Description
Gear pump. Specifications and dimensions shown are from manufacturer catalog data. Exact gear pump confirmed by pump model and nameplate before quoting.
| Models | SBS120 & 140 |
|---|---|
| Type | Double gear pump (P1 + P2) |
| Discharge rate | P1 20 cc/rev · P2 13 cc/rev |
| Max. pressure | P1 120 kg/cm² · P2 150 kg/cm² |
| Max. speed | 1,800 rpm |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

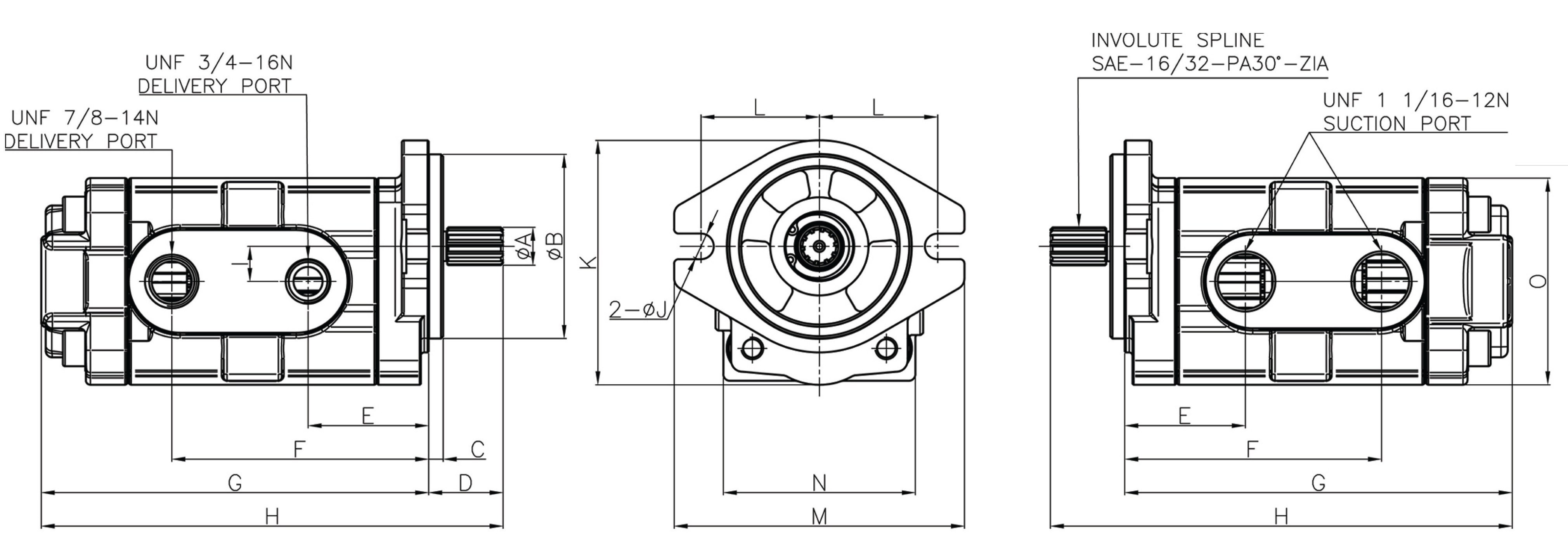

Manufacturer catalog image of this gear pump shown. Photos of the exact unit are available on request — send your pump model and a photo of the nameplate with your enquiry.
