Description
Gear pump. Specifications and dimensions shown are from manufacturer catalog data. Exact gear pump confirmed by pump model and nameplate before quoting.
| For main pumps | H3V63DTP/H5V80DTP · H3V112DTP/H5V140DTP |
|---|---|
| Type | Double gear pump (P1 + P2) |
| Discharge rate | P1 23 cc/rev · P2 10 / 16.8 cc/rev |
| Max. pressure | 180 kg/cm² |
| Max. speed | 3,200 rpm |
| Direction | CCW (L) / CW (R) |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

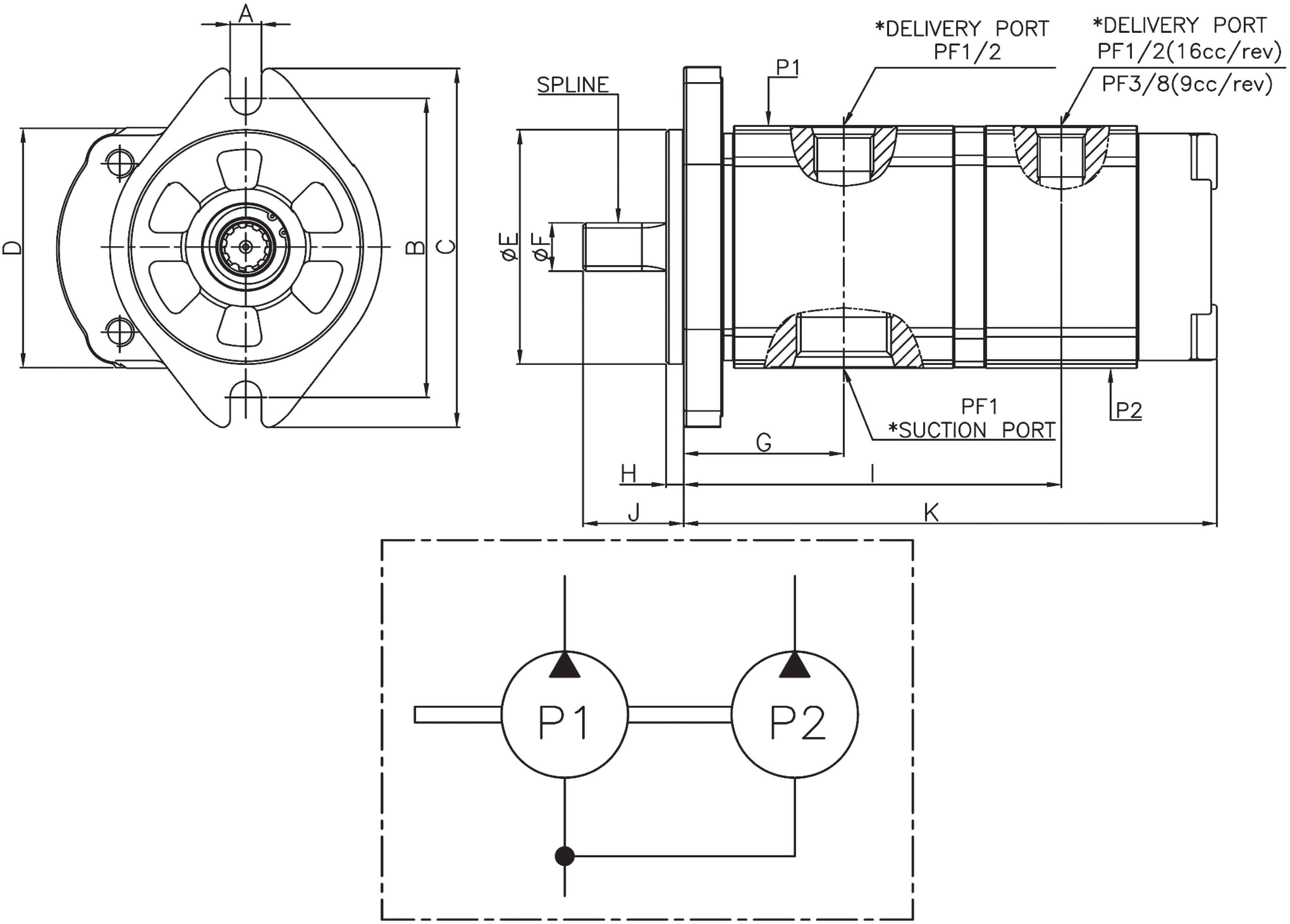

Manufacturer catalog image of this gear pump shown. Photos of the exact unit are available on request — send your pump model and a photo of the nameplate with your enquiry.
