Description

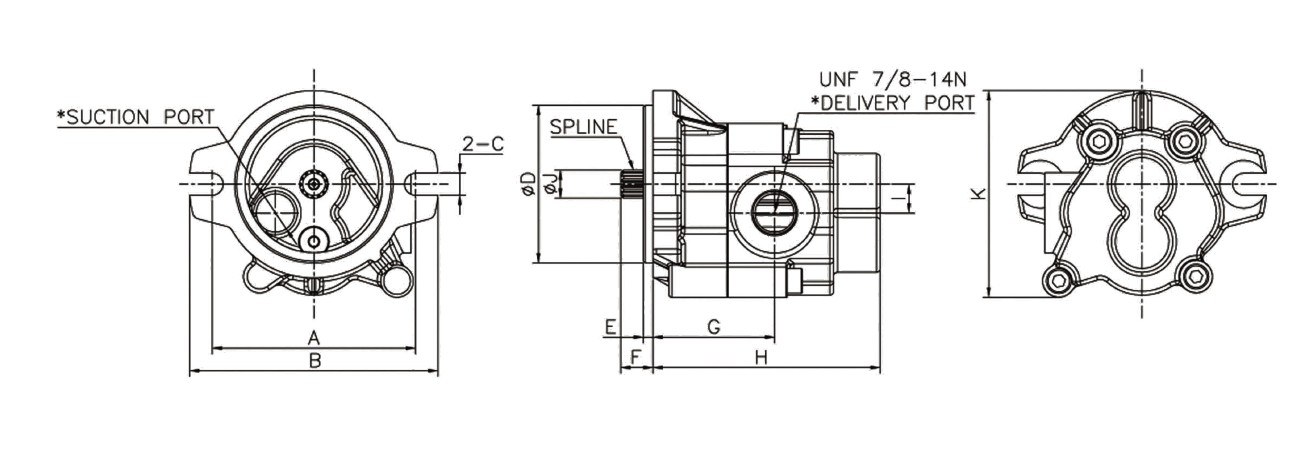

Gear pump. Specifications and dimensions shown are from manufacturer catalog data. Exact gear pump confirmed by pump model and nameplate before quoting.
| Model | H5V160DP |
|---|---|
| For main pumps | H5V160/200 DP (Caterpillar) |
| Discharge rate | 25 cc/rev |
| Max. pressure | 40 kg/cm² |
| Max. speed | 2,000 rpm |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

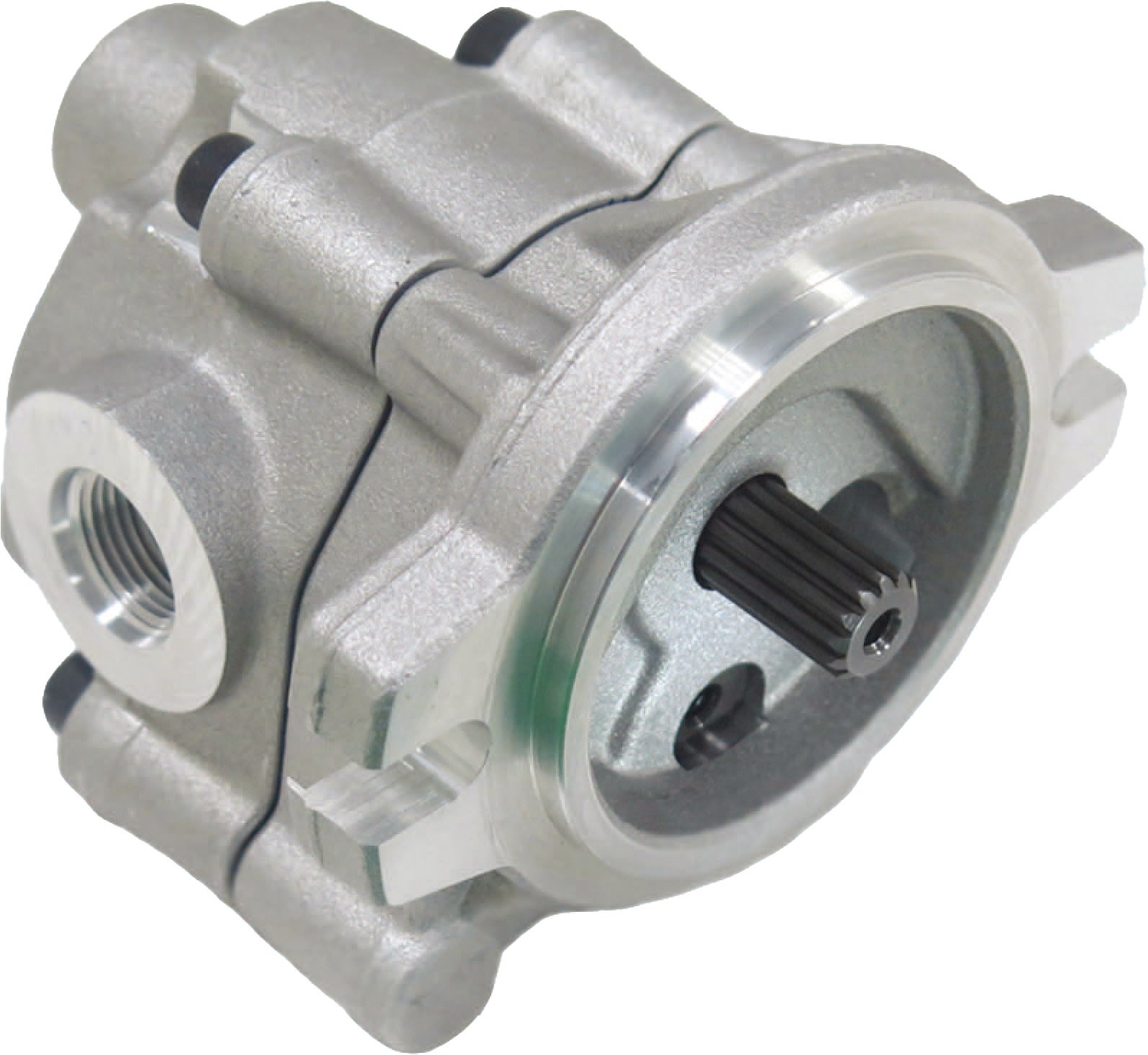

Manufacturer catalog image of this gear pump shown. Photos of the exact unit are available on request — send your pump model and a photo of the nameplate with your enquiry.
