Description
Main hydraulic pump for Caterpillar excavators — interchange model. Specifications shown are from manufacturer catalog data. Exact configuration confirmed by nameplate before quoting.
| Pump model | H5V200DPC |
|---|---|
| Equipment models | Caterpillar 345B / 345L |
| Interchange note | The manufacturer catalog states this pump can be applied on CAT345L/B instead of the A8VO200 pump |
| Displacement | 200 cc/rev |
| Max. pressure | 350 kg/cm² |
| Max. speed | 2,150 rpm |
| Catalog types | 9N00 / 9P00 |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

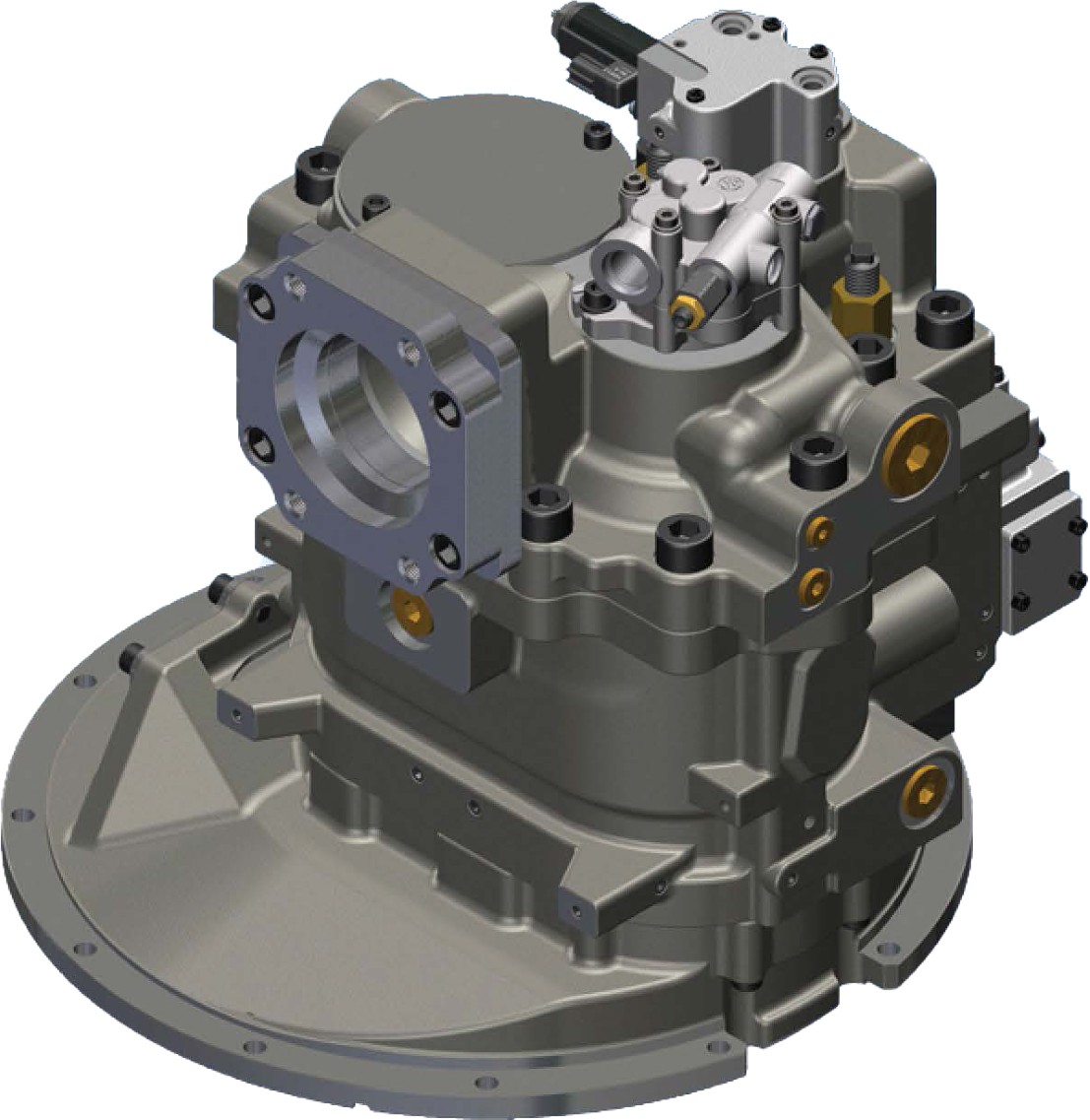

Manufacturer catalog image of this pump model shown. Photos of the exact unit are available on request — send a photo of your pump nameplate with your enquiry and we match the variant.
