Description
Gear pump. Specifications and dimensions shown are from manufacturer catalog data. Exact gear pump confirmed by pump model and nameplate before quoting.
| Models | PVD-00B · PVD-0B · PVD-1B · PVD-2B · PVD-3B |
|---|---|
| Discharge rate | 3.0 · 4.5 · 9.0 · 11 cc/rev (by model) |
| Max. pressure | 210 kg/cm² |
| Max. speed | 3,000 rpm |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

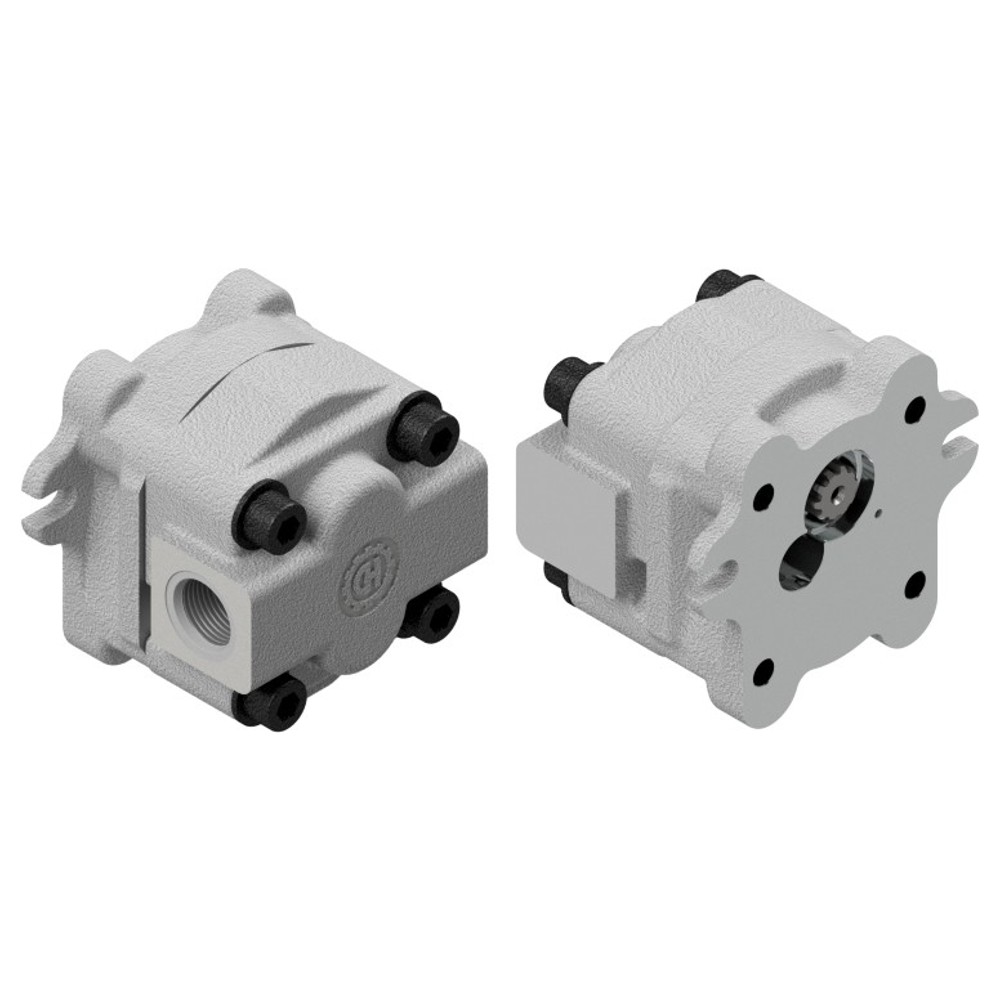

Manufacturer catalog image of this gear pump shown. Photos of the exact unit are available on request — send your pump model and a photo of the nameplate with your enquiry.
