Description
Swing motor assembly for excavators. Specifications shown are from manufacturer catalog data. Exact configuration confirmed by nameplate before quoting.
| Motor model | HG08/12 for MFB150/160 |
|---|---|
| Catalog variants | Without time delay valve · With time delay valve |
| Displacement | 151 cc/rev |
| Max. flow | 253 L/min |
| Brake torque | 685–891 N·m |
| Shaft end | Spline — 13 teeth, pitch circle Ø41.275 mm, module 8/16, 30° pressure angle, SAE standard |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

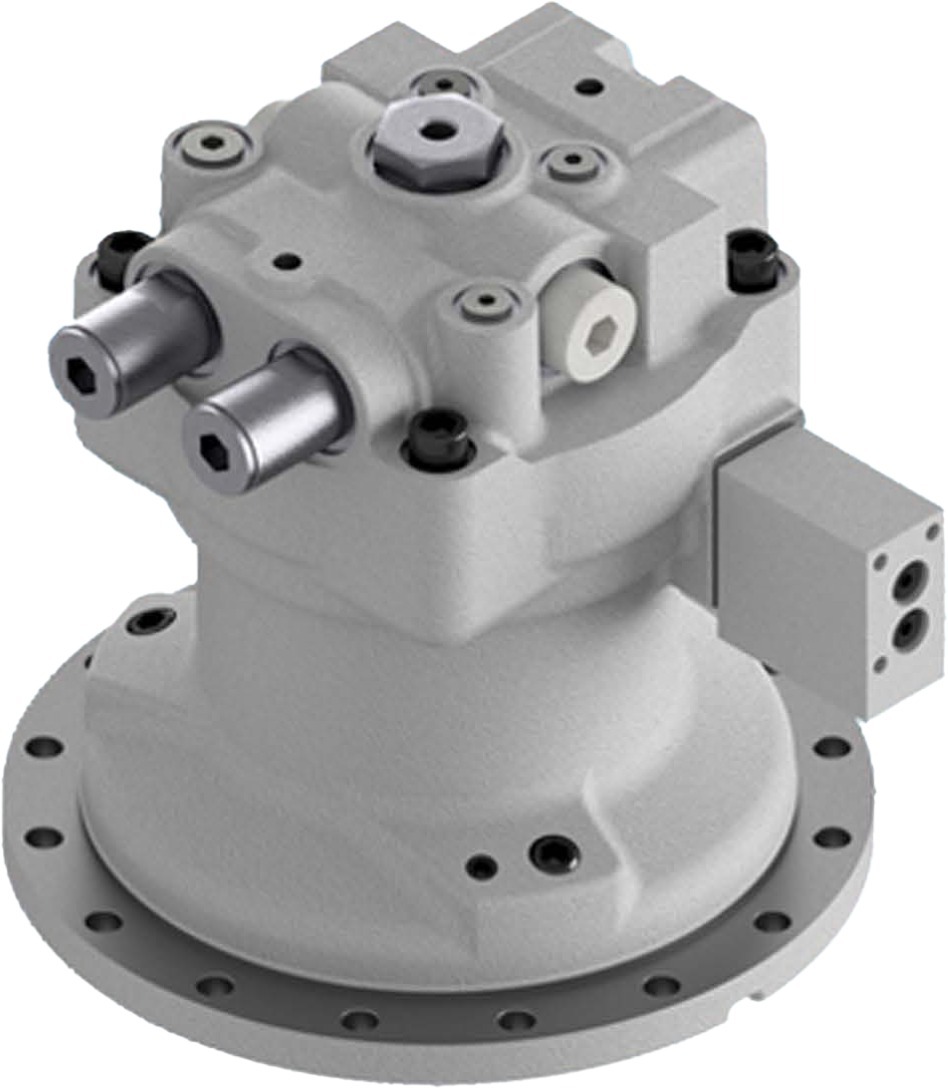

Manufacturer catalog image of this swing motor model shown. Photos of the exact unit are available on request — send a photo of your motor nameplate with your enquiry and we match the variant.
