Description
Replacement parts for Hitachi HMGE (HMT) Swing Motor — covering HMGE/HMT 09–40 (swing motors). Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Motor series | Hitachi HMGE (HMT) Swing Motor |
| Models covered | HMGE/HMT 09–40 (swing motors) |
| Parts in this range | 13 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

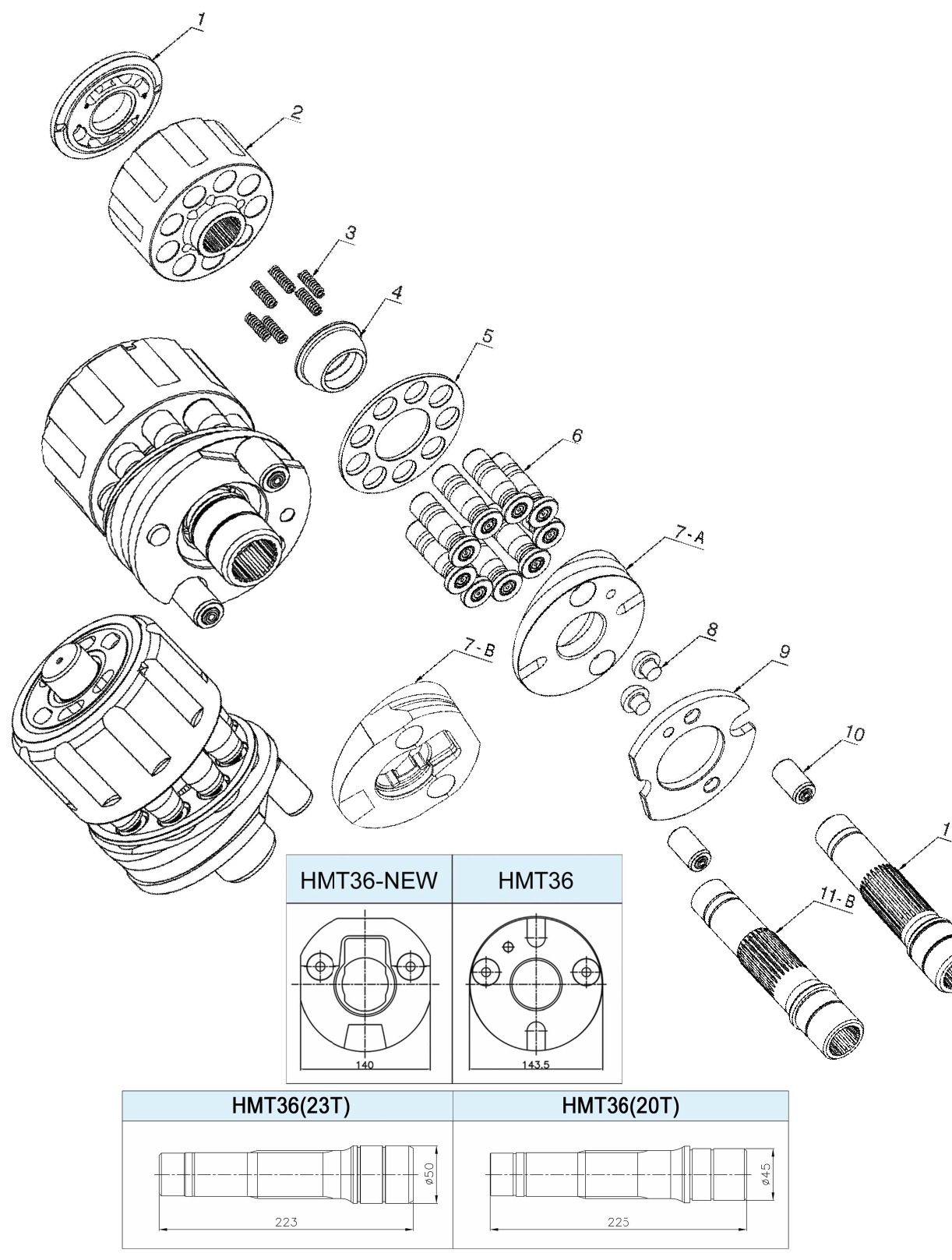

Parts list — Hitachi HMGE (HMT) Swing Motor Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Valve Plate | 1 | |
| 2 | Cylinder Block | 1 | |
| 3 | Coil Spring | 6 | |
| 4 | Ball Guide | 1 | |
| 5 | Set Plate | 1 | |
| 6 | Piston Shoe | 9 | |
| 7-A | Swash Plate | 1 | |
| 7-B | Swash Plate | 1 | NEW |
| 8 | Ball of Tilting Plate | 2 | |
| 9 | Tilting Plate With Ball | 1 | |
| 10 | Piston of Tilting Plate | 2 | |
| 11-A | Drive Shaft | 1 | 20T |
| 11-B | Drive Shaft | 1 | 23T |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
