Replacement parts for Komatsu KMF41 Swing Motor — covering KMF41 (swing motor). Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Motor series | Komatsu KMF41 Swing Motor |
| Models covered | KMF41 (swing motor) |
| Parts in this range | 14 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

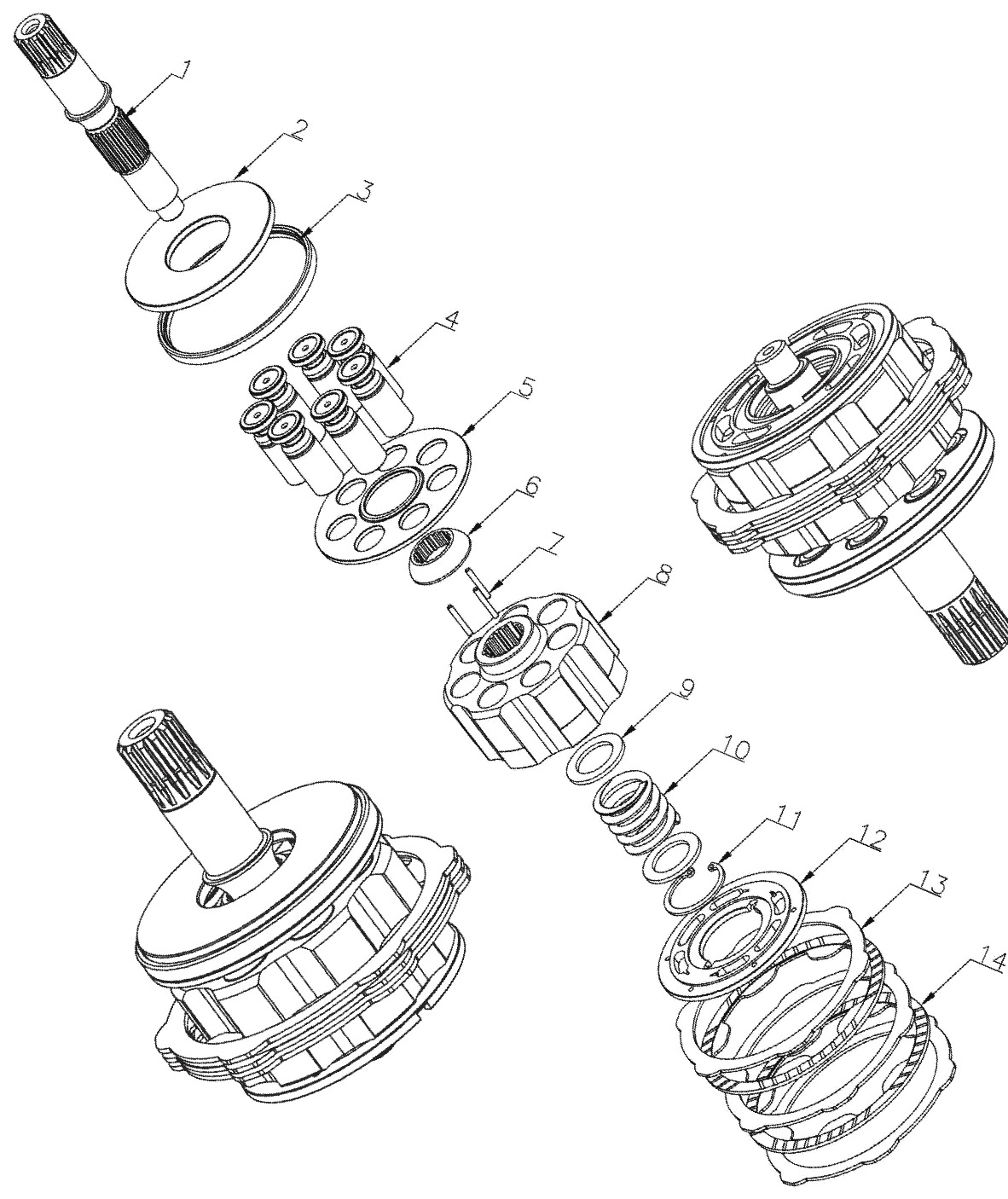

Parts list — Komatsu KMF41 Swing Motor Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Drive Shaft | 1 | |
| 2 | Shoe Plate | 1 | |
| 3 | Guide Ring | 1 | |
| 4 | Piston Shoe | 7 | |
| 5 | Set Plate | 1 | |
| 6 | Ball Guide | 1 | |
| 7 | Pin of Cylinder Block | 3 | |
| 8 | Cylinder Block | 1 | |
| 9 | Space | 2 | |
| 10 | Coil Spring | 1 | |
| 11 | Snap Ring | 1 | |
| 12 | Valve Plate | 1 | |
| 13 | Separation Plate | 3 | |
| 14 | Friction Plate | 2 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
