Description

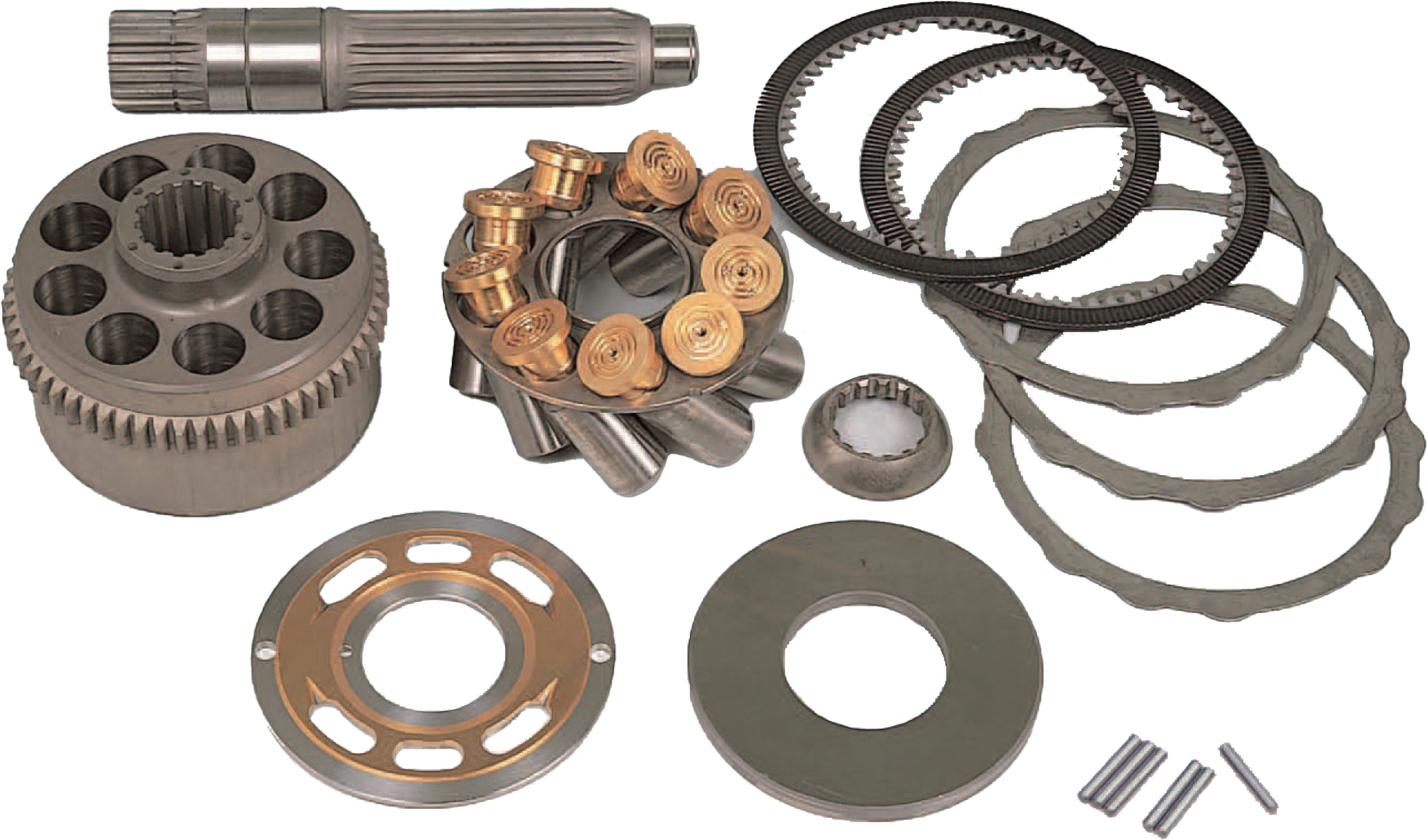

Replacement parts for Kawasaki M2X Swing Motor — covering M2X55–210. Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Motor series | Kawasaki M2X Swing Motor |
| Models covered | M2X55–210 |
| Parts in this range | 14 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

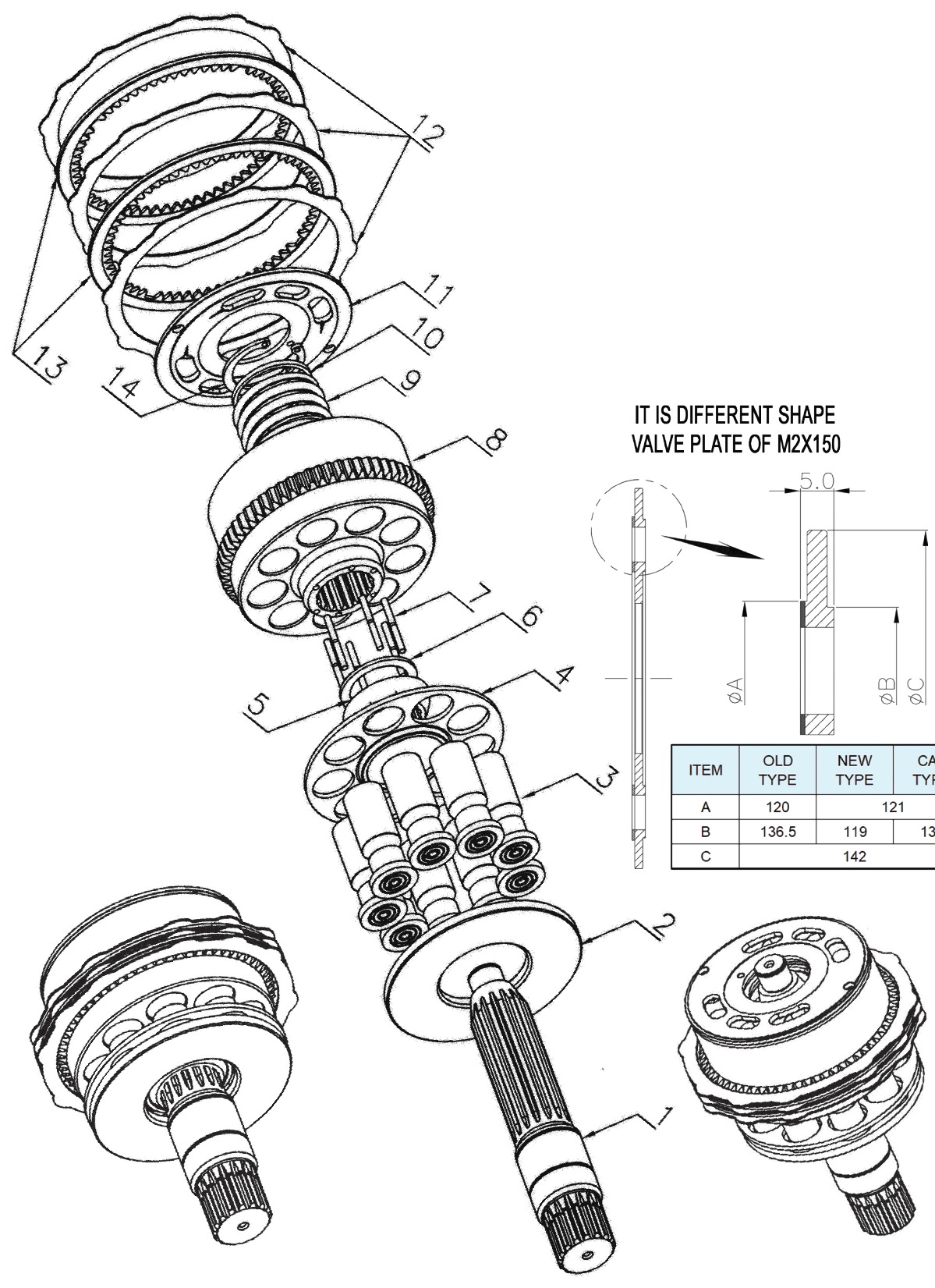

Parts list — Kawasaki M2X Swing Motor Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Drive Shaft | 1 | |
| 2 | Shoe Plate | 1 | |
| 3 | Piston Shoe | 9 | |
| 4 | Set Plate | 1 | |
| 5 | Ball Guide | 1 | |
| 6 | Space of Ball Guide | 1 | |
| 7 | Pin of Cylinder Block | 6 | |
| 8 | Cylinder Block | 1 | |
| 9 | Coil Spring | 1 | |
| 10 | Space | 2 | |
| 11 | Valve Plate | 1 | |
| 12 | Separation Plate | 3(4) | |
| 13 | Friction Plate | 2(3) | |
| 14 | Snap Ring | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
