Description

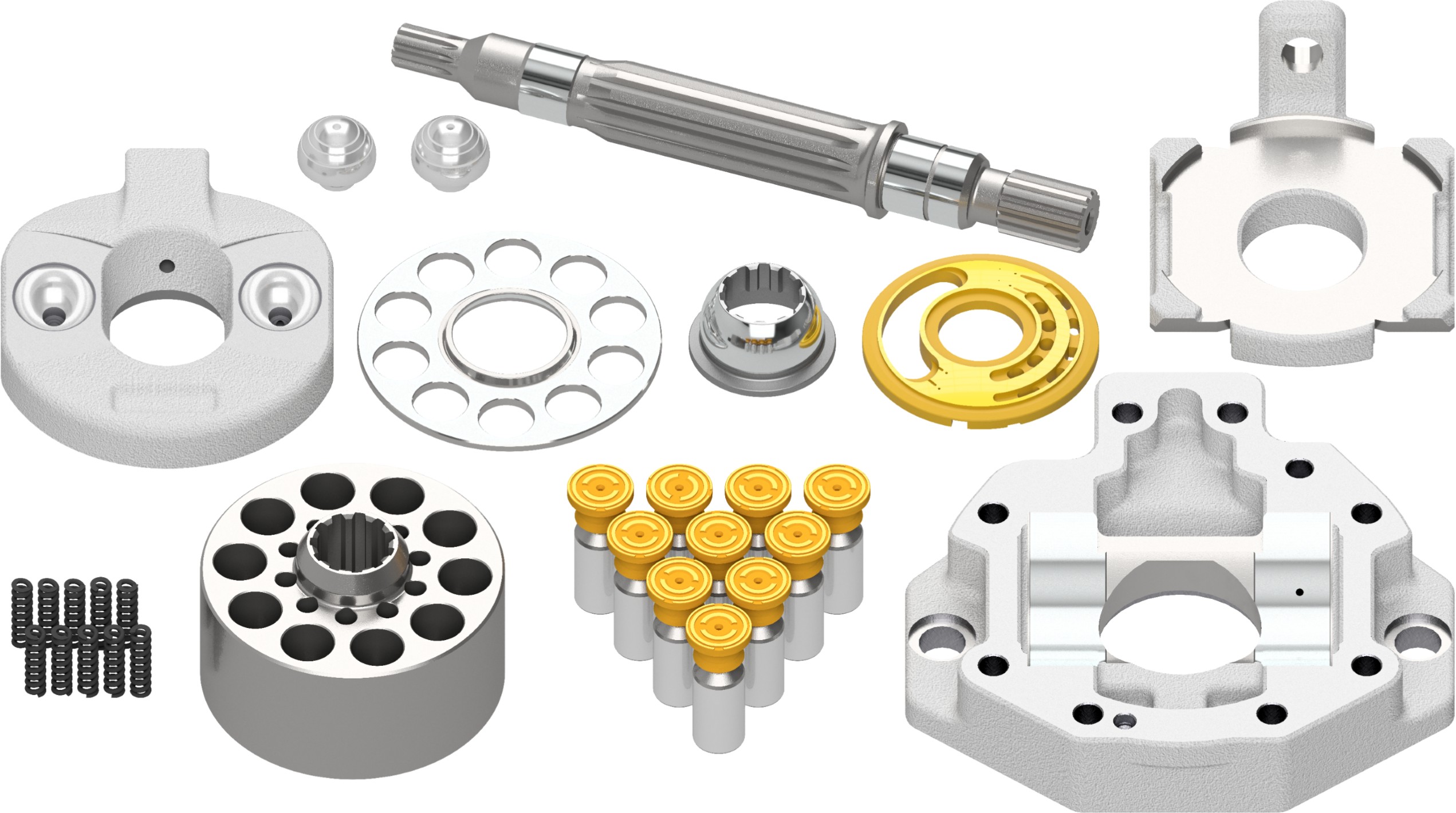

Replacement parts for Kawasaki K3SP30/36 (H3SP) Swing Motor — covering Swing motors K3SP30/36. Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Motor series | Kawasaki K3SP30/36 (H3SP) Swing Motor |
| Models covered | Swing motors K3SP30/36 |
| Parts in this range | 15 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

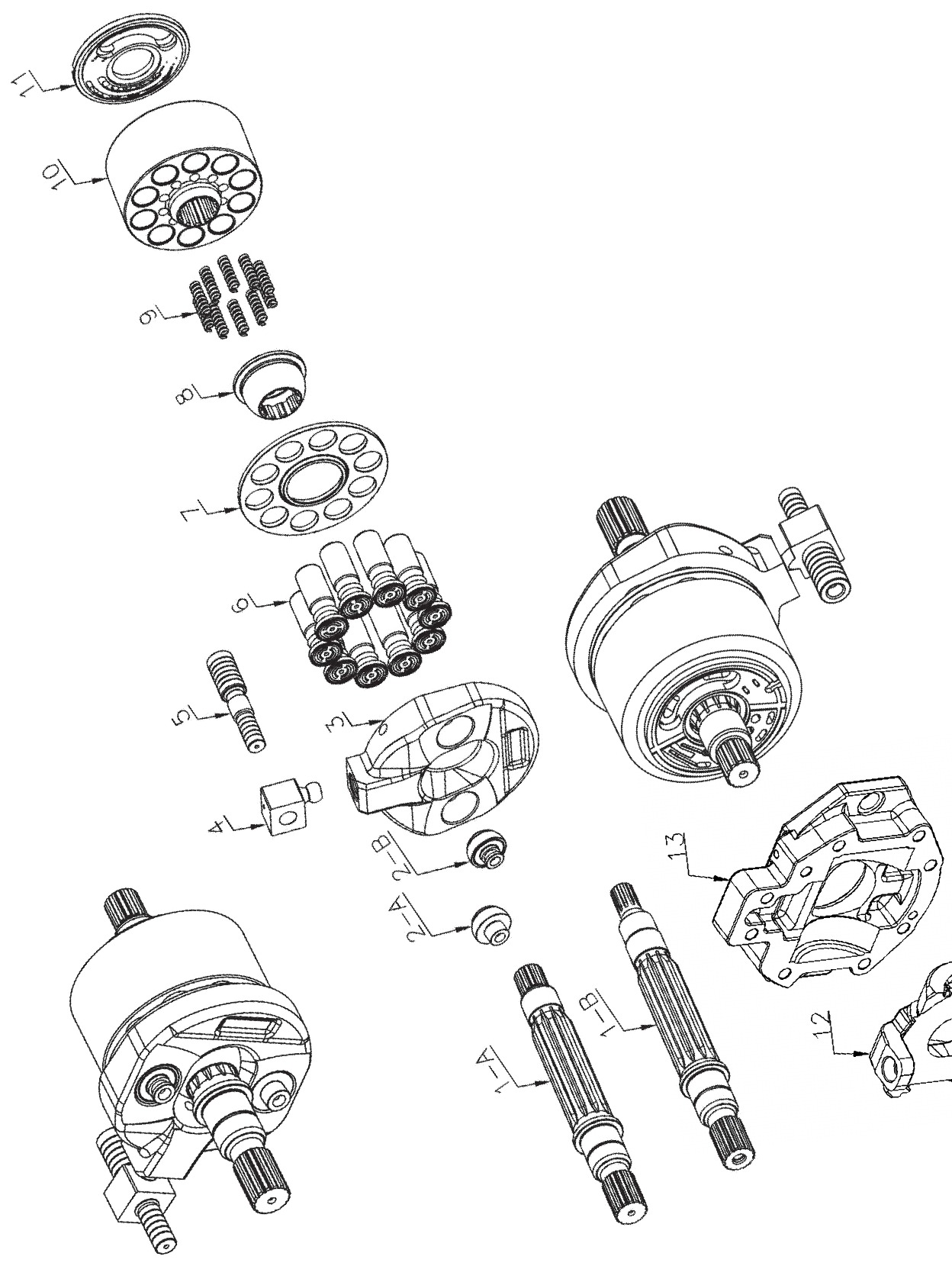

Parts list — Kawasaki K3SP30/36 (H3SP) Swing Motor Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1-A | Drive Shaft | 1 | Single pilot type |
| 1-B | Drive Shaft | 1 | Double pilot type |
| 2-A | Swash Plate Pivot Ball (L) | 1 | |
| 2-B | Swash Plate Pivot Ball (R) | 1 | |
| 3 | Swash Plate | 1 | Pivot type |
| 4 | Tilting Pin | 1 | |
| 5 | Servo Piston | 1 | |
| 6 | Piston Shoe | 10 | |
| 7 | Set Plate | 1 | |
| 8 | Ball Guide | 1 | |
| 9 | Coil Spring | 10 | |
| 10 | Cylinder Block | 1 | |
| 11 | Valve Plate | 1 | |
| 12 | Swash Plate | 1 | Cradle type |
| 13 | Support | 1 | Cradle type |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
