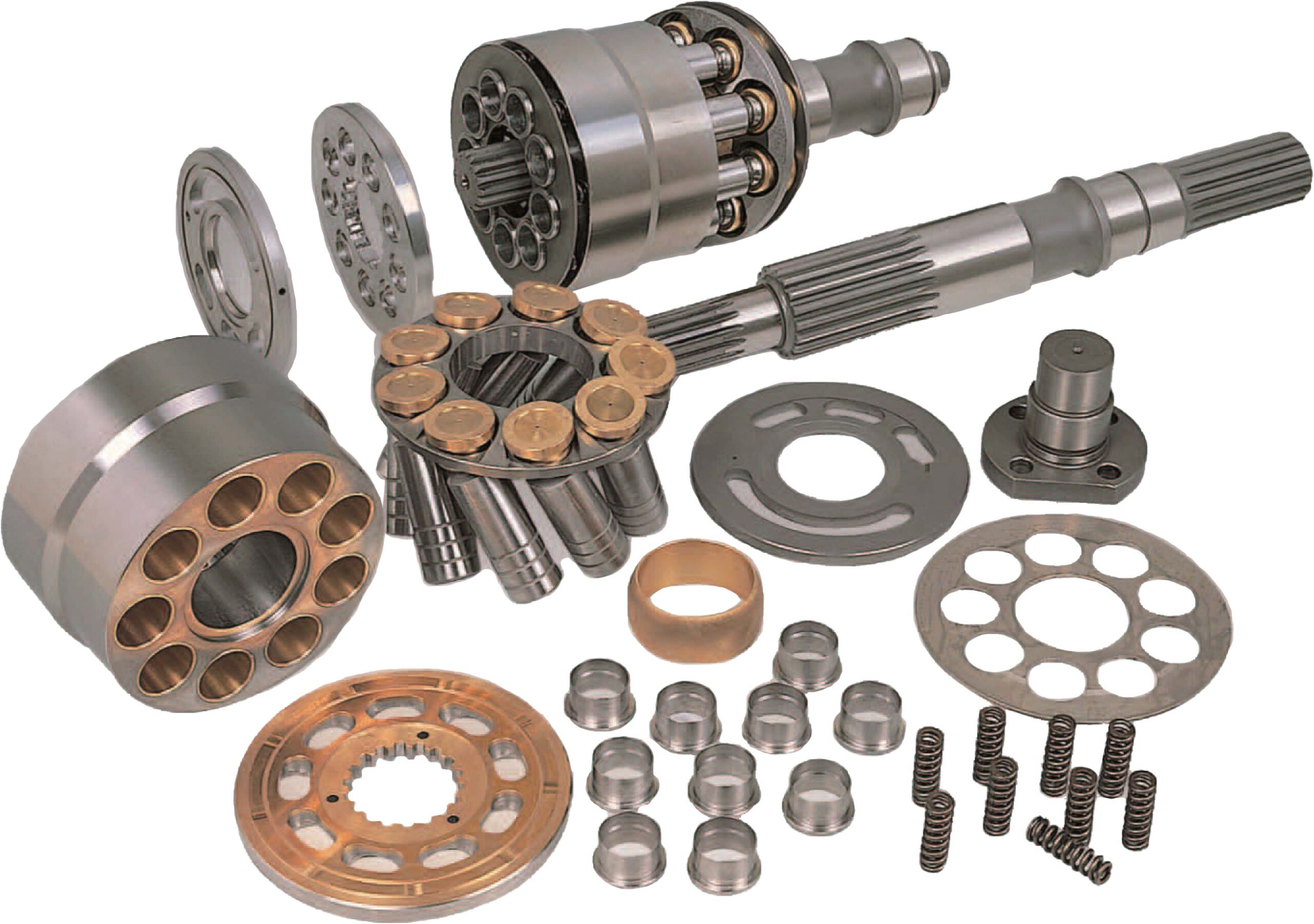

Replacement parts for Caterpillar SPK10-10 – SPV10-10 Hydraulic Pump — covering SPK10/10 · SPV10/10. Includes cylinder blocks, drive shafts, piston shoes, pistons and swash plates — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Caterpillar SPK10-10 – SPV10-10 Hydraulic Pump |
| Models covered | SPK10/10 · SPV10/10 |
| Parts in this range | 16 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

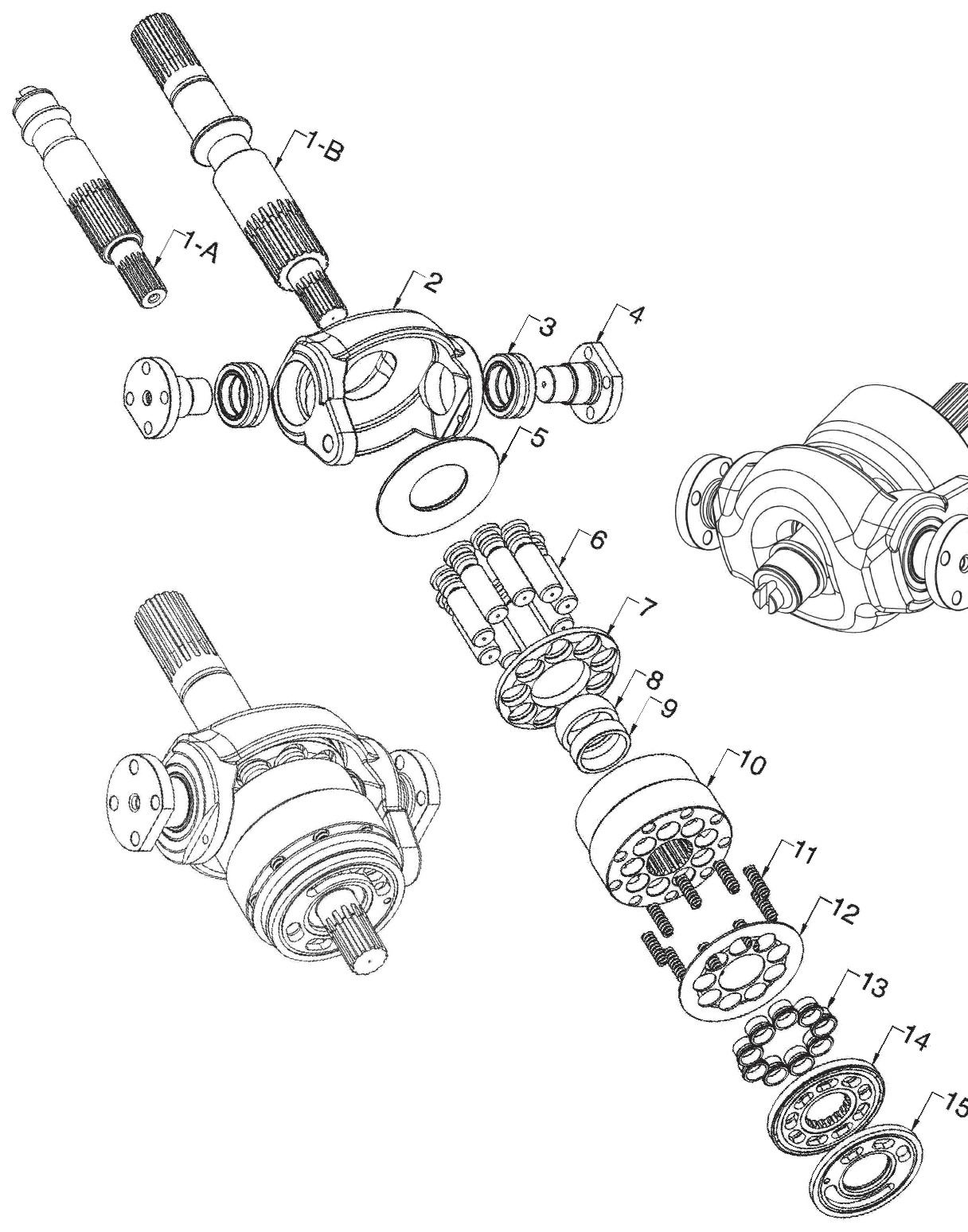

Parts list — Caterpillar SPK10-10 – SPV10-10 Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1-A | Drive Shaft (L) | 1 | |
| 1-B | Drive Shaft (R) | 1 | |
| 2 | Swash Plate | 1 | |
| 3 | Eye Bearing | 2 | |
| 4 | Axle Shaft | 2 | |
| 5 | Shoe Plate | 1 | |
| 6 | Piston Shoe | 9 | |
| 7 | Set Plate | 1 | |
| 8 | Ball Guide | 1 | |
| 9 | Space | 1 | |
| 10 | Cylinder Block (Drum) | 1 | |
| 11 | Coil Spring | 9 | |
| 12 | Seal Retainer | 1 | |
| 13 | Drum Seal | 9 | |
| 14 | Bearing Plate | 1 | |
| 15 | Port Plate (L/R) | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
