Description

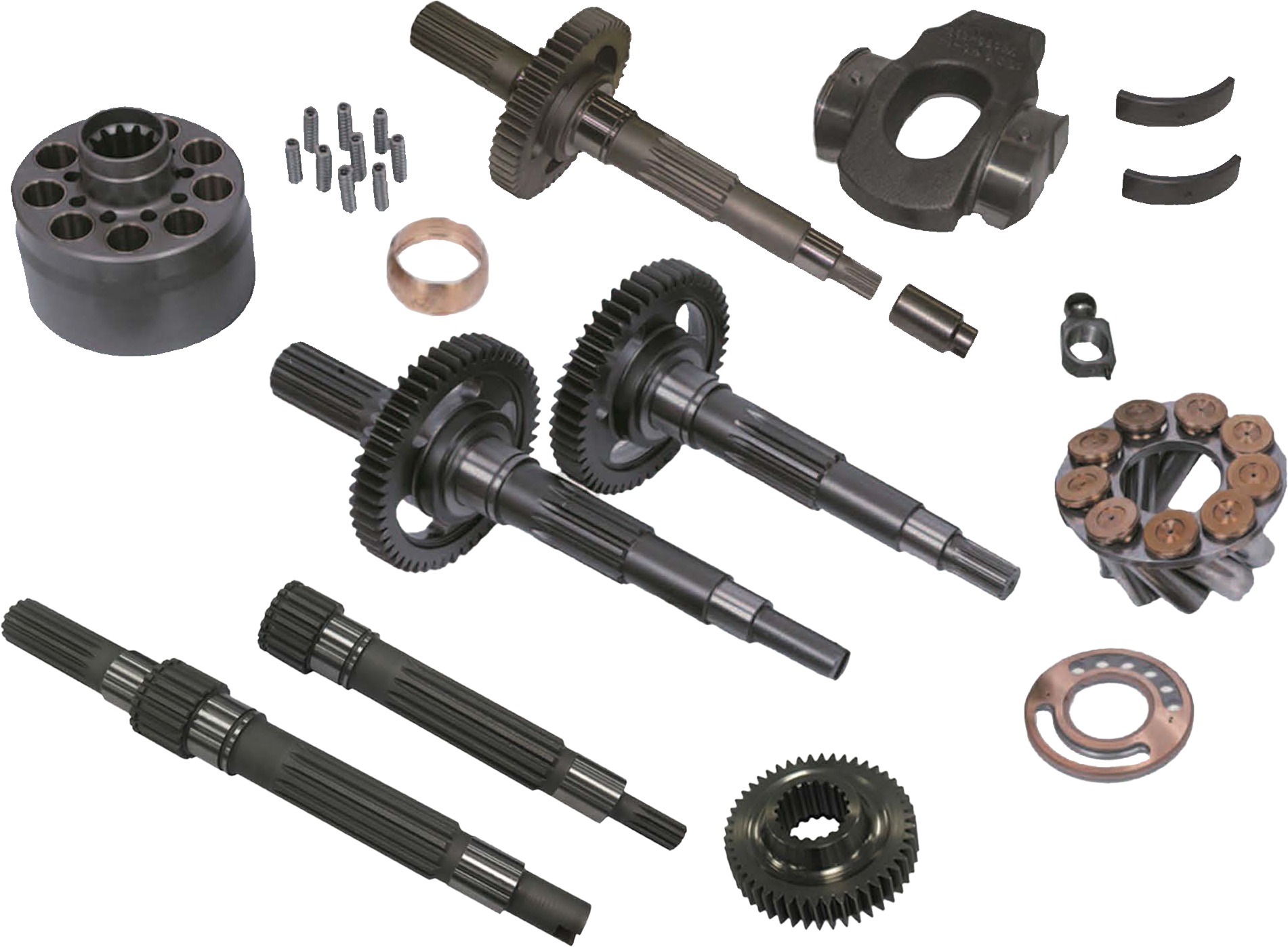

Replacement parts for Caterpillar SBS Hydraulic Pump — covering SBS80–180. Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Caterpillar SBS Hydraulic Pump |
| Models covered | SBS80–180 |
| Parts in this range | 22 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

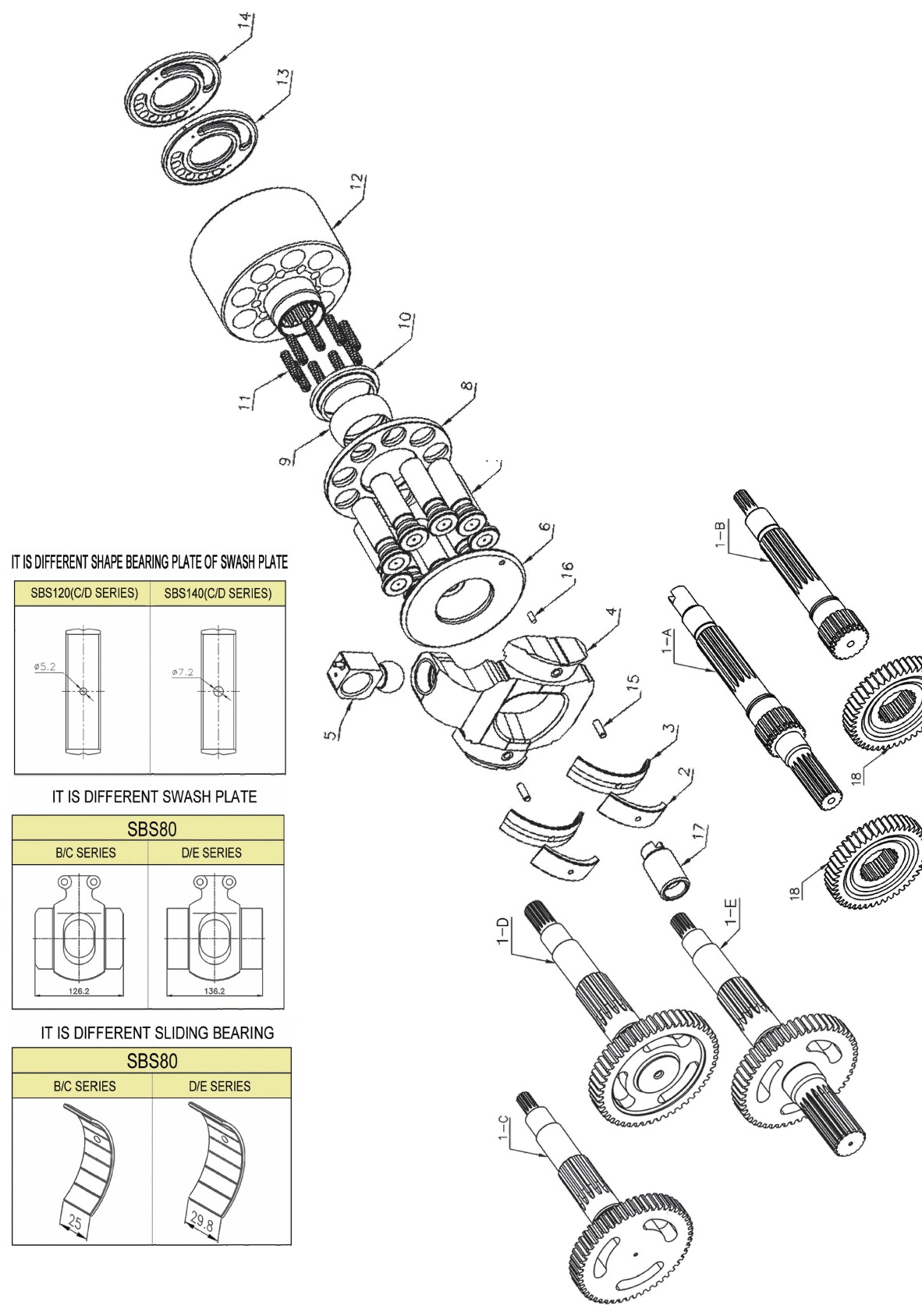

Parts list — Caterpillar SBS Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1-A | Drive Shaft (R) | 1 | Key Type |
| 1-B | Drive Shaft (L) | 1 | 10T |
| 1-C | Drive Shaft (L) | 1 | 11T |
| 1-D | Drive Shaft (L) | 1 | 15T |
| 1-E | Drive Shaft (R) | 1 | 17T |
| 2 | Sliding Bearing of Support | 1 | |
| 3 | Sliding Bearing of Swash | 1 | |
| 4 | Swash Plate | 1 | |
| 5 | Tilting Pin | 1 | |
| 6 | Shoe Plate | 1 | |
| 7 | Piston Shoe | 9 | |
| 8 | Set Plate | 1 | |
| 9 | Ball Guide | 1 | |
| 10 | Space | 1 | |
| 11 | Coil Spring | 9 | |
| 12 | Cylinder Block | 1 | |
| 13 | Valve Plate (SBS120) | 1 | |
| 14 | Valve Plate (SBS140) | 1 | |
| 15 | Pin of Swash Plate | 2 | |
| 16 | Pin of Shoe Plate | 1 | |
| 17 | Coupling | 1 | |
| 18 | Idle Gear Drive Shaft (L/R) | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
