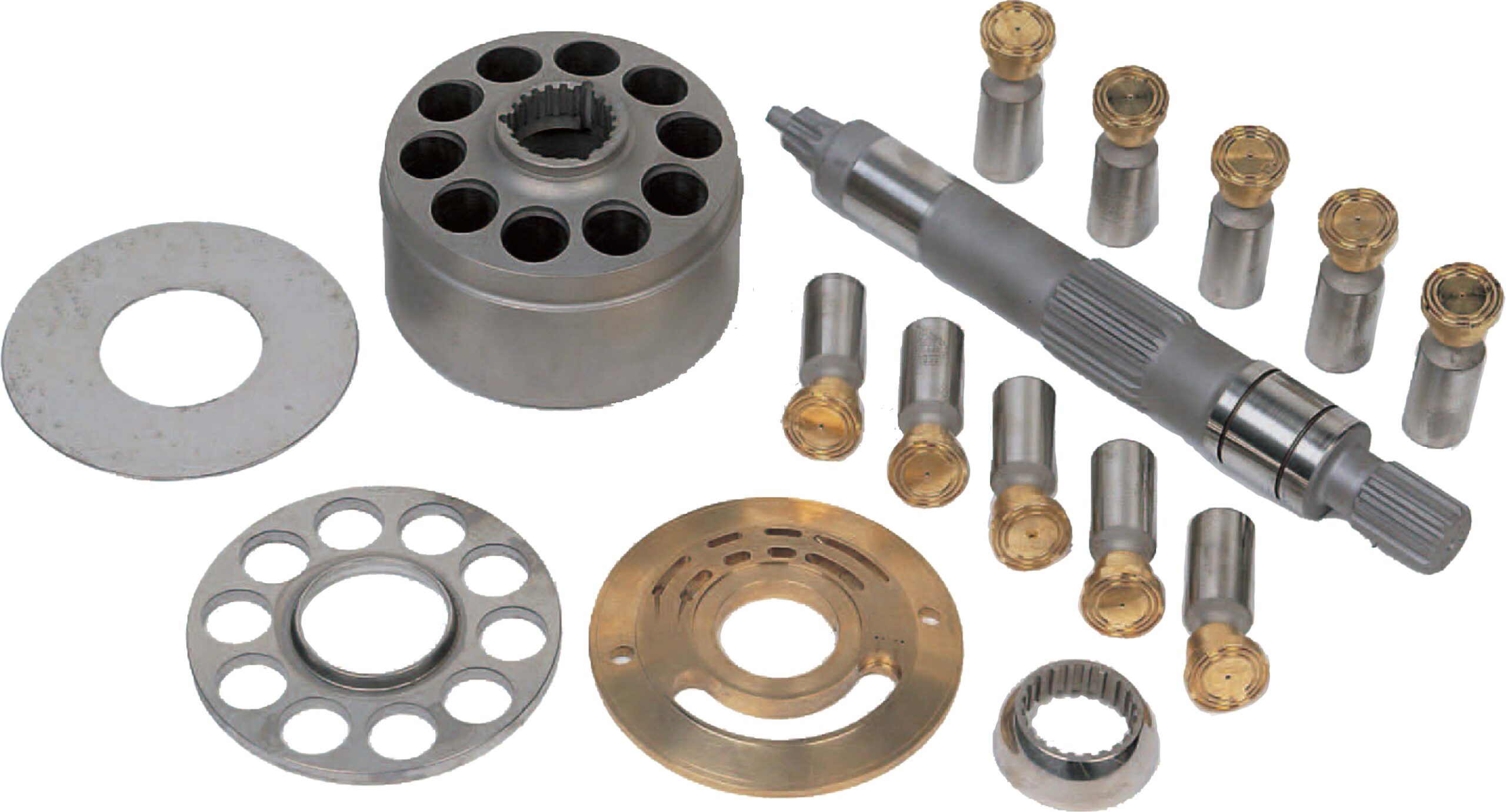

Replacement parts for Caterpillar AP2D Hydraulic Pump — covering AP2D08–36. Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Caterpillar AP2D Hydraulic Pump |
| Models covered | AP2D08–36 |
| Parts in this range | 17 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

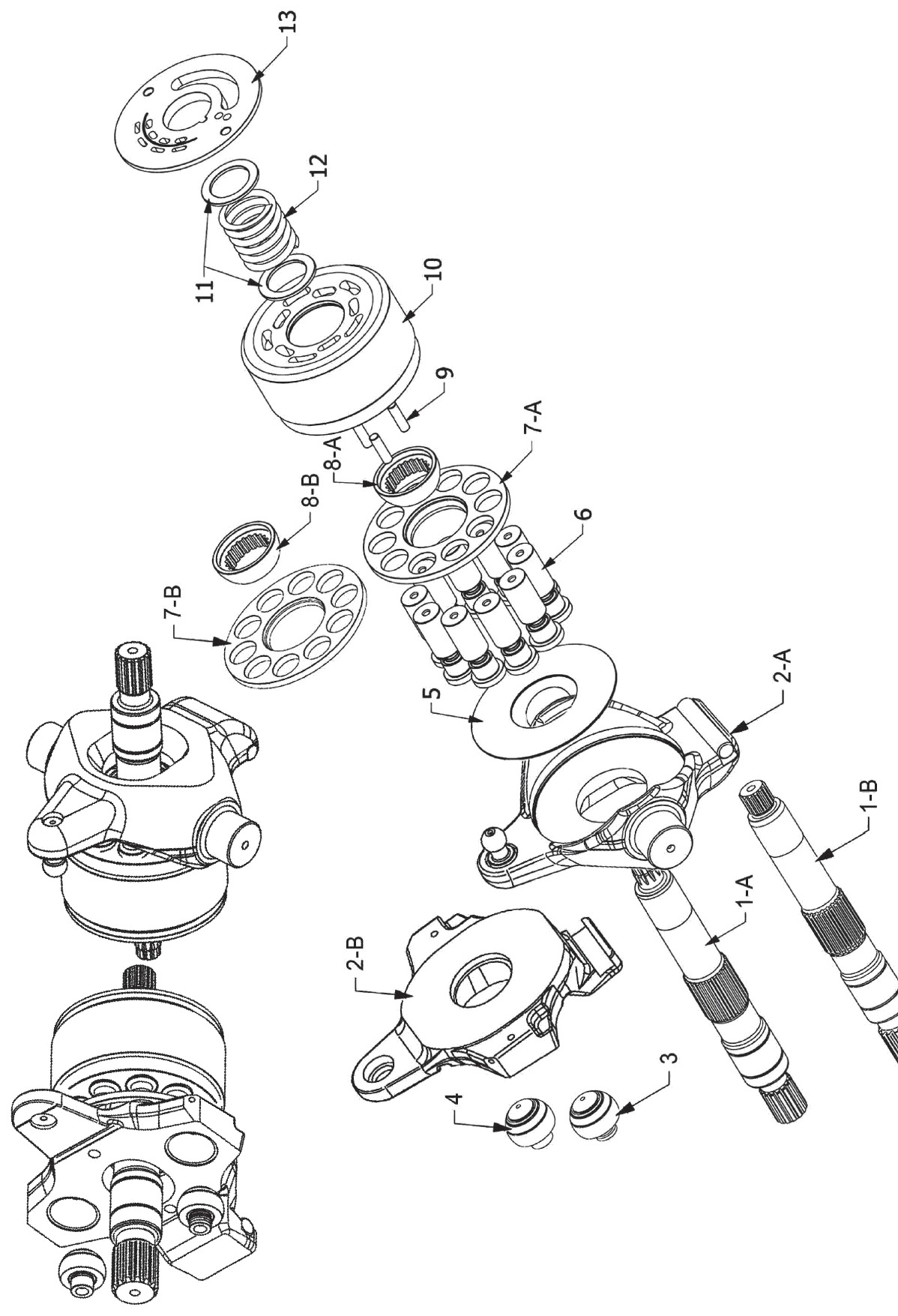

Parts list — Caterpillar AP2D Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1-A | Drive Shaft | 1 | 15T |
| 1-B | Drive Shaft | 1 | 14T |
| 2-A | Swash Plate | 1 | TRUNNION |
| 2-B | Swash Plate | 1 | PIVOT |
| 3 | Ball of Swash Plate | 1 | L |
| 4 | Ball of Swash Plate | 1 | R |
| 5 | Shoe Plate | 1 | |
| 6 | Piston Shoe | 10 | |
| 7-A | Set Plate | 1 | TRUNNION |
| 7-B | Set Plate | 1 | PIVOT |
| 8-A | Ball Guide | 1 | TRUNNION |
| 8-B | Ball Guide | 1 | PIVOT |
| 9 | Pin of Cylinder Block | 3 | |
| 10 | Cylinder Block | 1 | |
| 11 | Space | 2 | |
| 12 | Coil Spring | 1 | |
| 13 | Valve Plate | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
