Description
Main hydraulic pump for Caterpillar 330B and 330L excavators. Specifications shown are from manufacturer catalog data. Exact configuration confirmed by nameplate before quoting.
| Equipment model | Caterpillar 330B / 330L |
|---|---|
| Pump model | H5V160DPC |
| Interchange note | The manufacturer catalog states this pump can be applied on CAT 330L/B instead of the A8VO160 pump |
| Displacement | 160 cc/rev |
| Max. pressure | 350 kg/cm² |
| Max. speed | 2,200 rpm |
| Catalog types | 9N00 / 9P00 |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |
| Status | Model range documented from manufacturer catalogues — exact variant and availability confirmed at quotation |
| Pricing | Price on quotation. Fitment is confirmed by a specialist before any order. |

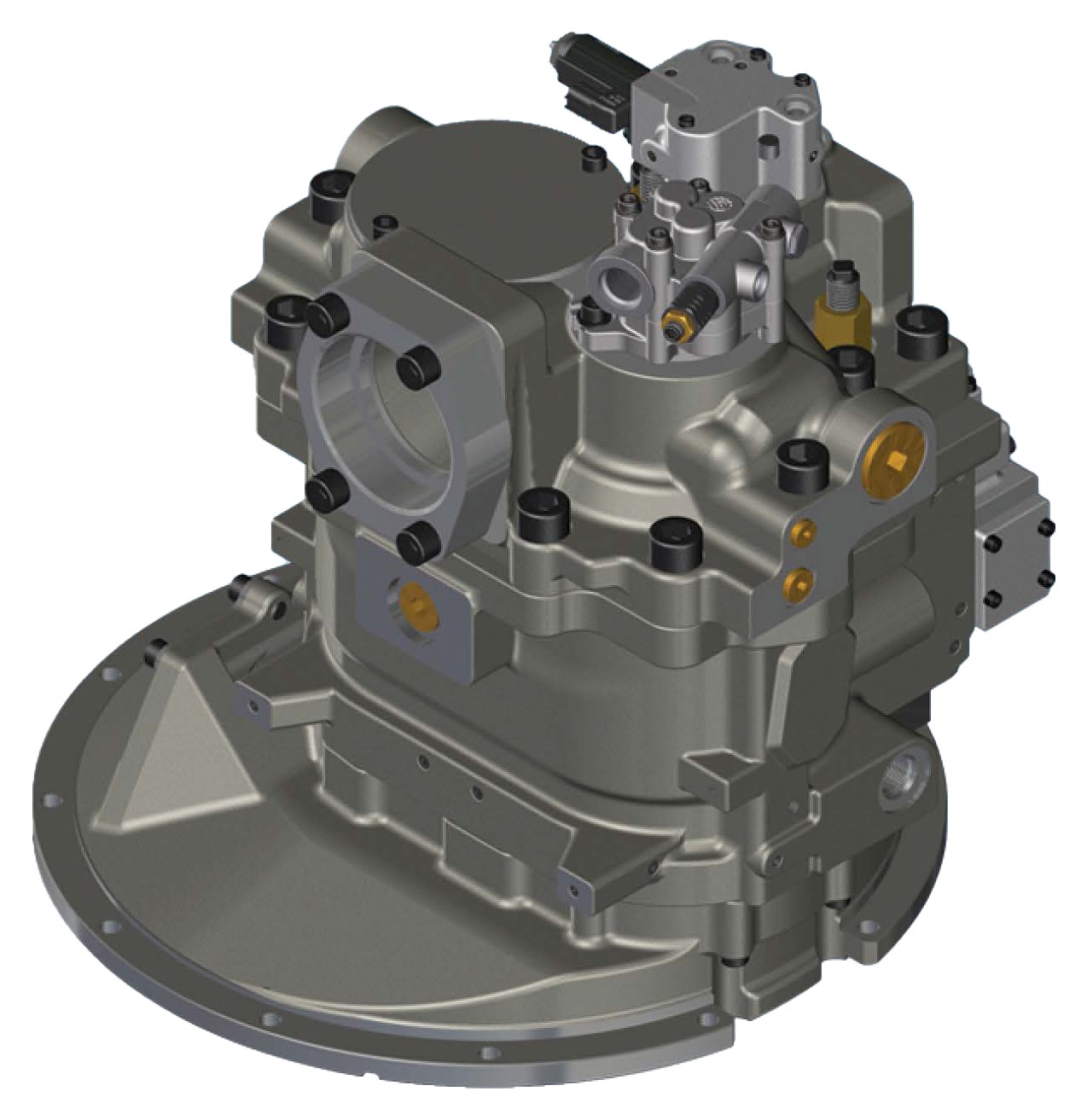

Manufacturer catalog image of this pump model shown. Photos of the exact unit are available on request — send a photo of your pump nameplate with your enquiry and we match the variant.
