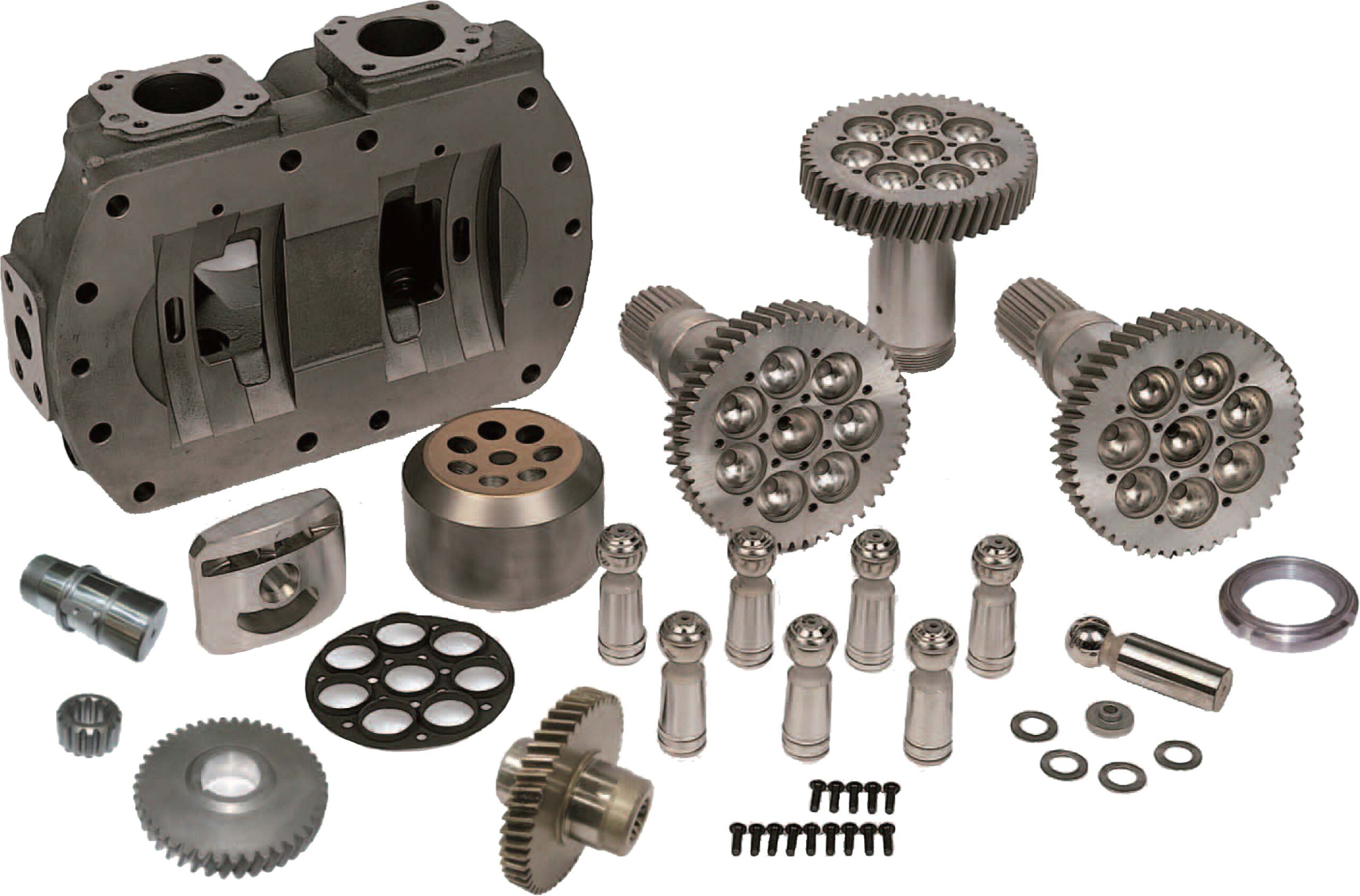

Replacement parts for Rexroth A8VO107 (6.1 & 6.3) Hydraulic Pump — covering A8VO107 (Series 6.1 & 6.3). Includes cylinder blocks, valve plates, drive shafts, pistons and servo pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Rexroth A8VO107 (6.1 & 6.3) Hydraulic Pump |
| Models covered | A8VO107 (Series 6.1 & 6.3) |
| Parts in this range | 28 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

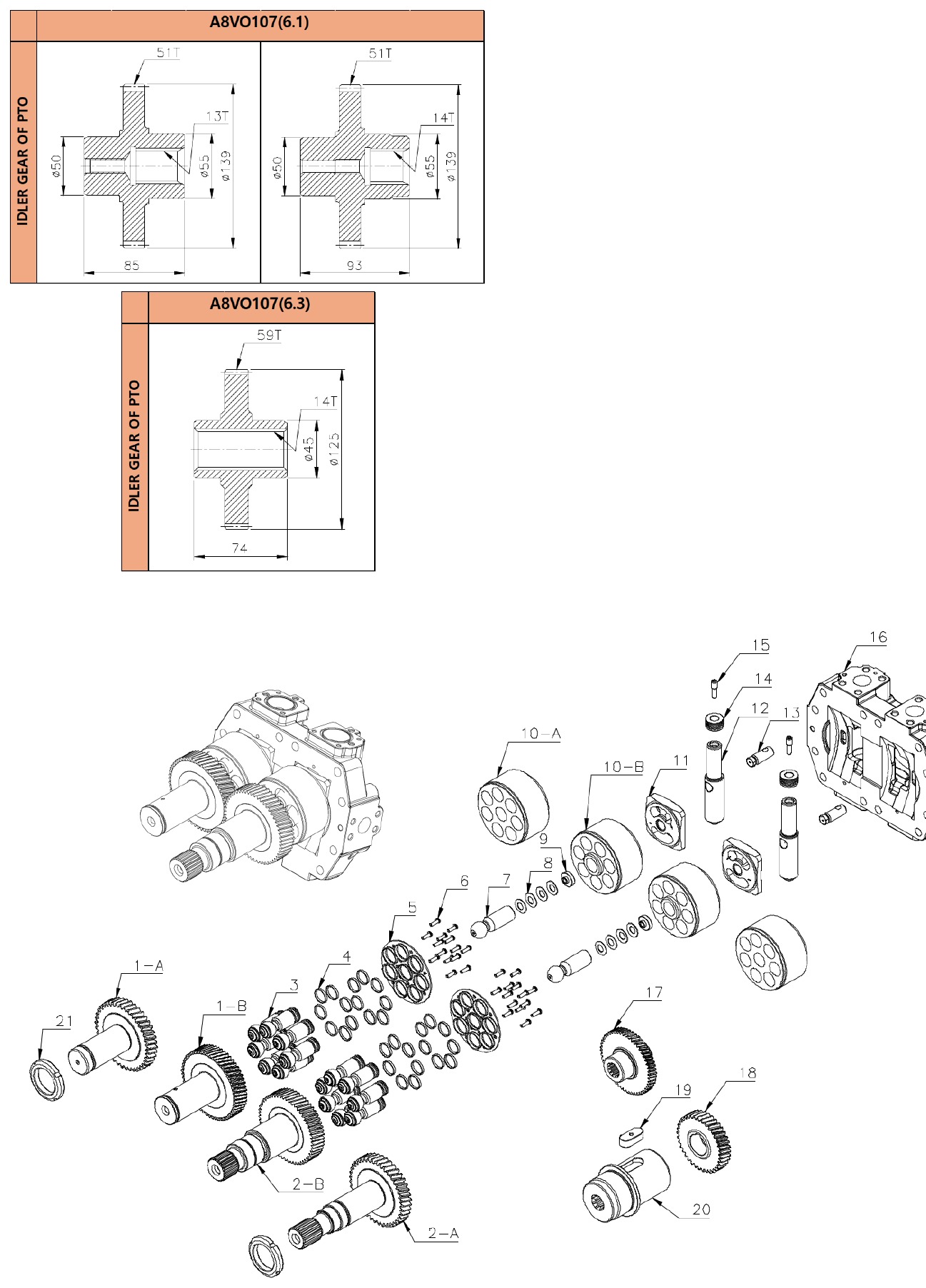

Parts list — Rexroth A8VO107 (6.1 & 6.3) Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1-A | Drive Shaft (L) — 6.1 Type | 1 | Lock nut type |
| 1-B | Drive Shaft (L) — 6.1 Type | 1 | Snap ring type |
| 2-A | Drive Shaft (R) — 6.3 Type | 1 | Lock nut type |
| 2-B | Drive Shaft (R) — 6.3 Type | 1 | Snap ring type |
| 3 | Piston (7-Hole) | 14 | |
| 4 | Piston Ring (7-Hole) | 28 | |
| 5 | Retainer Plate | 2 | |
| 6 | Socket Bolt | 28 | |
| 7 | Center Pin | 2 | |
| 8 | Disk Spring | 8 | |
| 9 | Disk Spring Holder | 2 | |
| 10-A | Cylinder Block (6.1) | 2 | Flat type |
| 10-B | Cylinder Block (6.3) | 2 | Convex type |
| 11 | Valve Plate (L) | 1 | |
| 11 | Valve Plate (R) | 1 | |
| 12 | Servo Piston | 2 | |
| 13 | Servo Piston Pin | 2 | |
| 14 | Plunger of Servo Piston | 2 | |
| 15 | Bolt of Servo Piston Pin | 2 | |
| 16 | Head Block | 1 | |
| 17 | Idler Gear of PTO (6.1) | 1 | Flat type — 13T & 51T |
| 17 | Idler Gear of PTO (6.1) | 1 | Flat type — 14T & 51T |
| 17 | Idler Gear of PTO (6.3) | 1 | Flat type — 14T & 59T |
| 18 | Idler Gear (6.1) | 1 | 43T |
| 18 | Idler Gear (6.3) | 1 | 46T |
| 19 | Key | 1 | |
| 20 | Shaft of Idler Gear | 1 | |
| 21 | Lock Nut (6.1) | 2 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
