Description

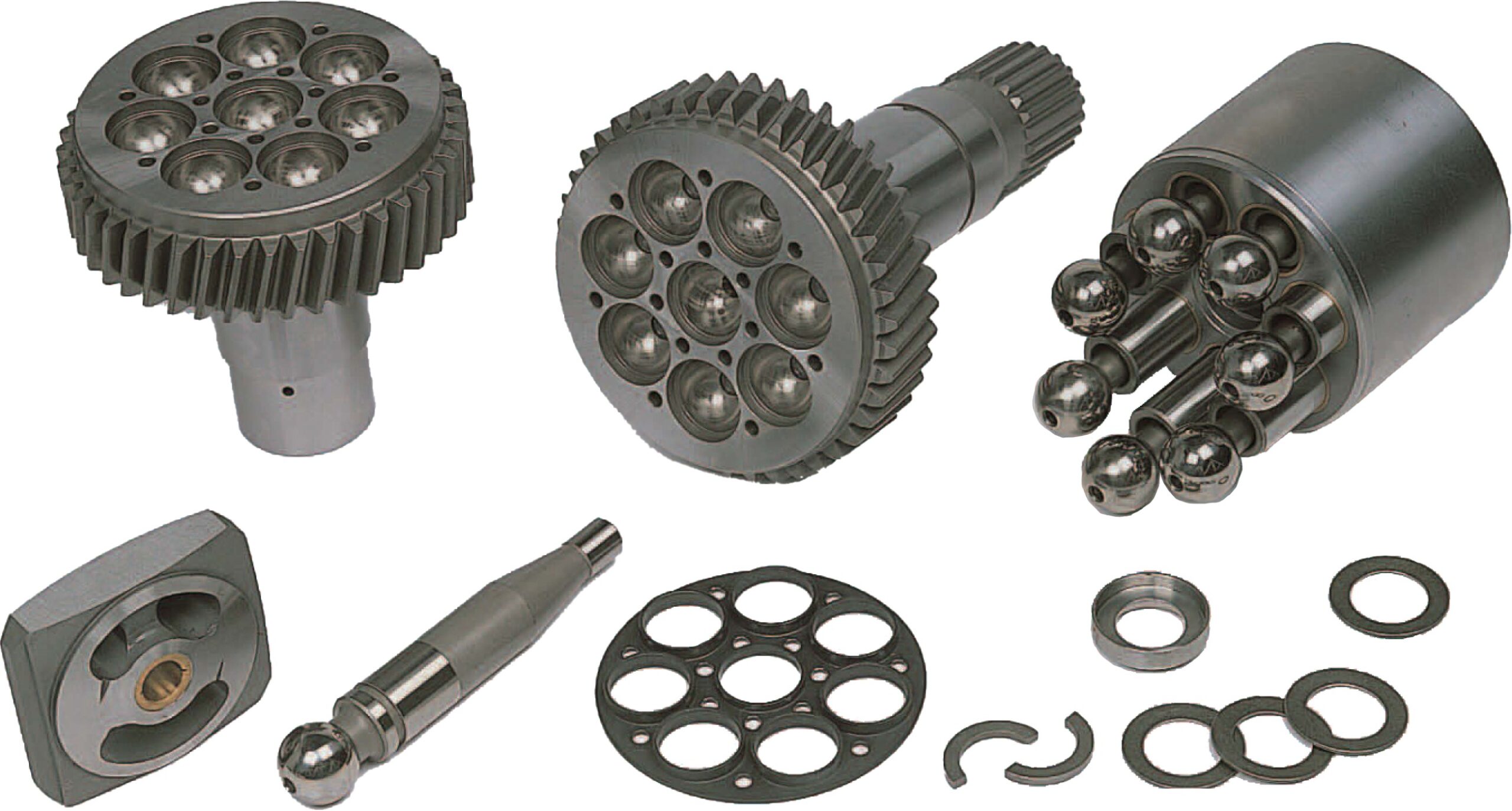

Replacement parts for Rexroth A8V (SR1R) Hydraulic Pump — covering A8V55/80/107/160. Includes cylinder blocks, valve plates, drive shafts and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Rexroth A8V (SR1R) Hydraulic Pump |
| Models covered | A8V55/80/107/160 |
| Parts in this range | 13 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

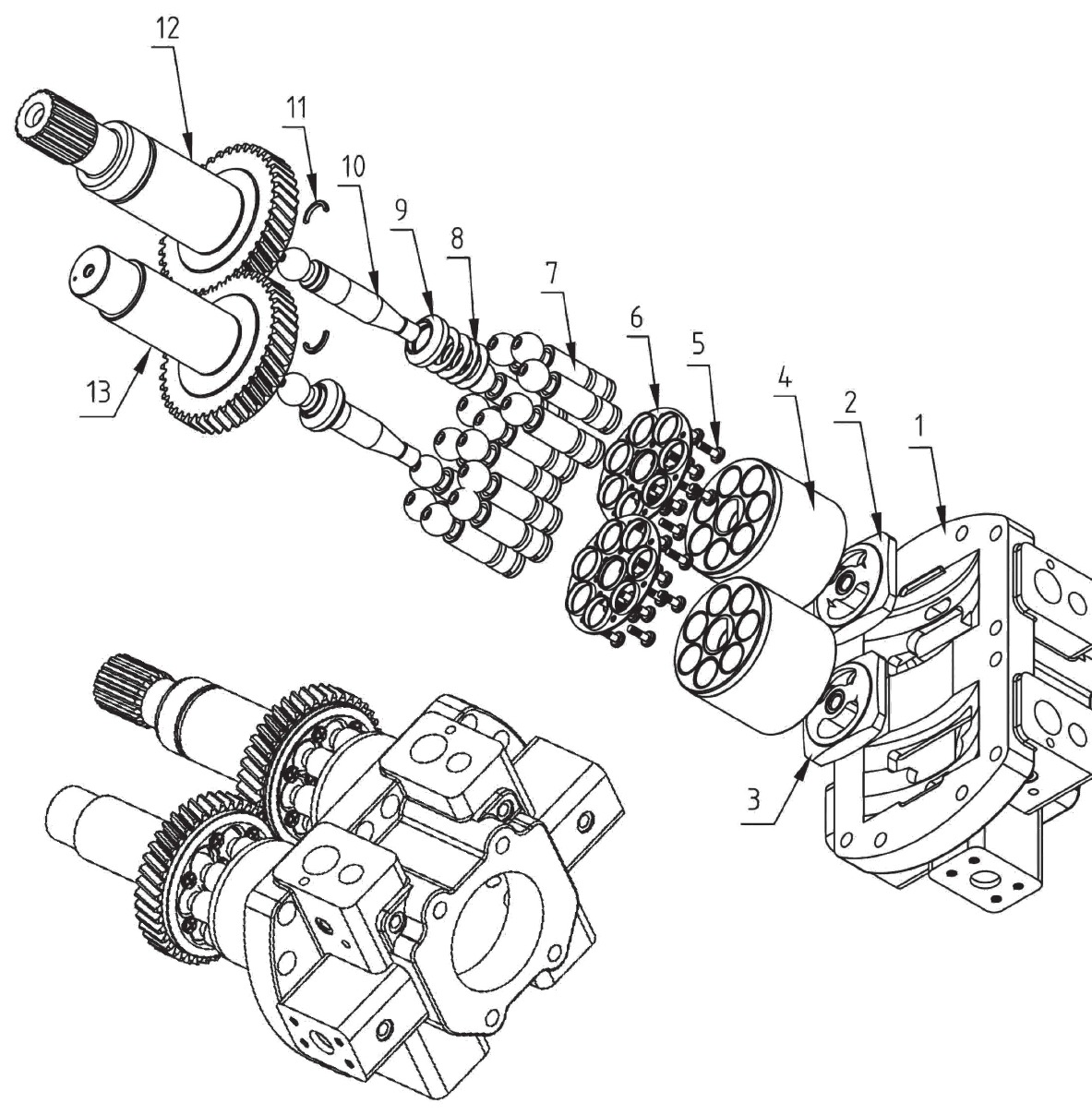

Parts list — Rexroth A8V (SR1R) Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Head Cover | 1 | |
| 2 | Valve Plate (R) | 1 | |
| 3 | Valve Plate (L) | 1 | |
| 4 | Cylinder Block | 2 | |
| 5 | Socket Bolt | 28 | |
| 6 | Retainer Plate | 2 | |
| 7 | Piston | 14 | |
| 8 | Disk Spring | 8 | |
| 9 | Disk Spring Holder | 2 | |
| 10 | Center Pin | 2 | |
| 11 | Space | 4 | |
| 12 | Drive Shaft (R) | 1 | |
| 13 | Drive Shaft (L) | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
