Description

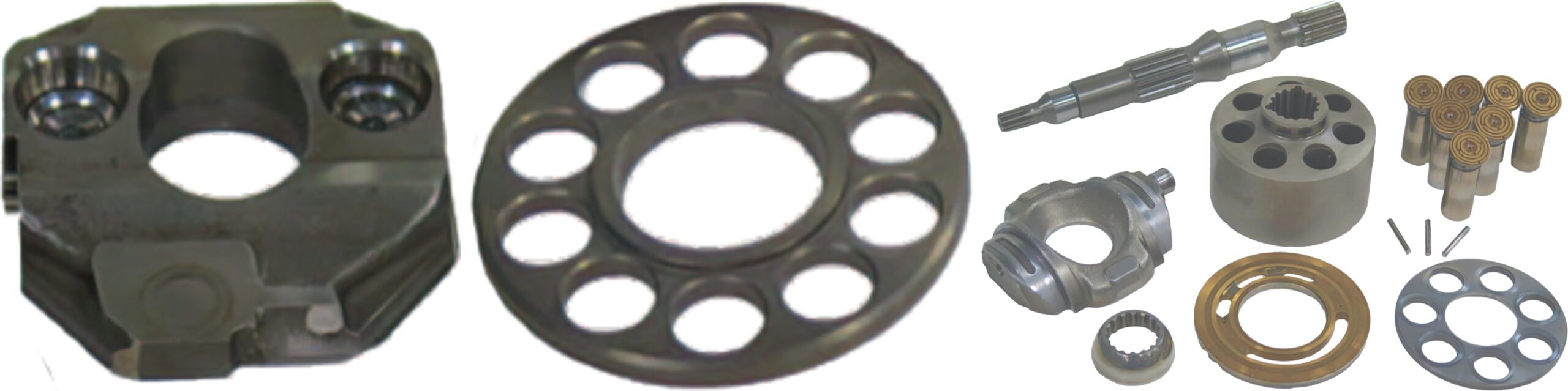

Replacement parts for Komatsu LPV Hydraulic Pump — covering LPV28/30/45 (incl. D51 fitment). Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Komatsu LPV Hydraulic Pump |
| Models covered | LPV28/30/45 (incl. D51 fitment) |
| Parts in this range | 17 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |
Parts list — Komatsu LPV Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1-A | Drive Shaft | 1 | LPV28/45 |
| 1-B | Drive Shaft | 1 | LPV30 |
| 1-C | Drive Shaft | 1 | LPV45 (D51) — 10 Hole |
| 2-A | Cam Rocker | 1 | LPV28/45 |
| 2-B | Cam Rocker | 1 | LPV30 |
| 3-A | Piston Shoe | 7 | |
| 3-C | Piston Shoe | 10 | LPV45 (D51) — 10 Hole |
| 4-A | Set Plate | 1 | |
| 4-C | Set Plate | 1 | LPV45 (D51) — 10 Hole |
| 5 | Ball Guide | 1 | |
| 6 | Pin of Cylinder Block | 3 | |
| 7-A | Cylinder Block | 1 | |
| 7-C | Cylinder Block | 1 | LPV45 (D51) — 10 Hole |
| 8 | Space of Cylinder Block | 2 | |
| 9 | Coil Spring | 1 | |
| 10 | Snap Ring | 1 | |
| 11 | Valve Plate | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
