Description

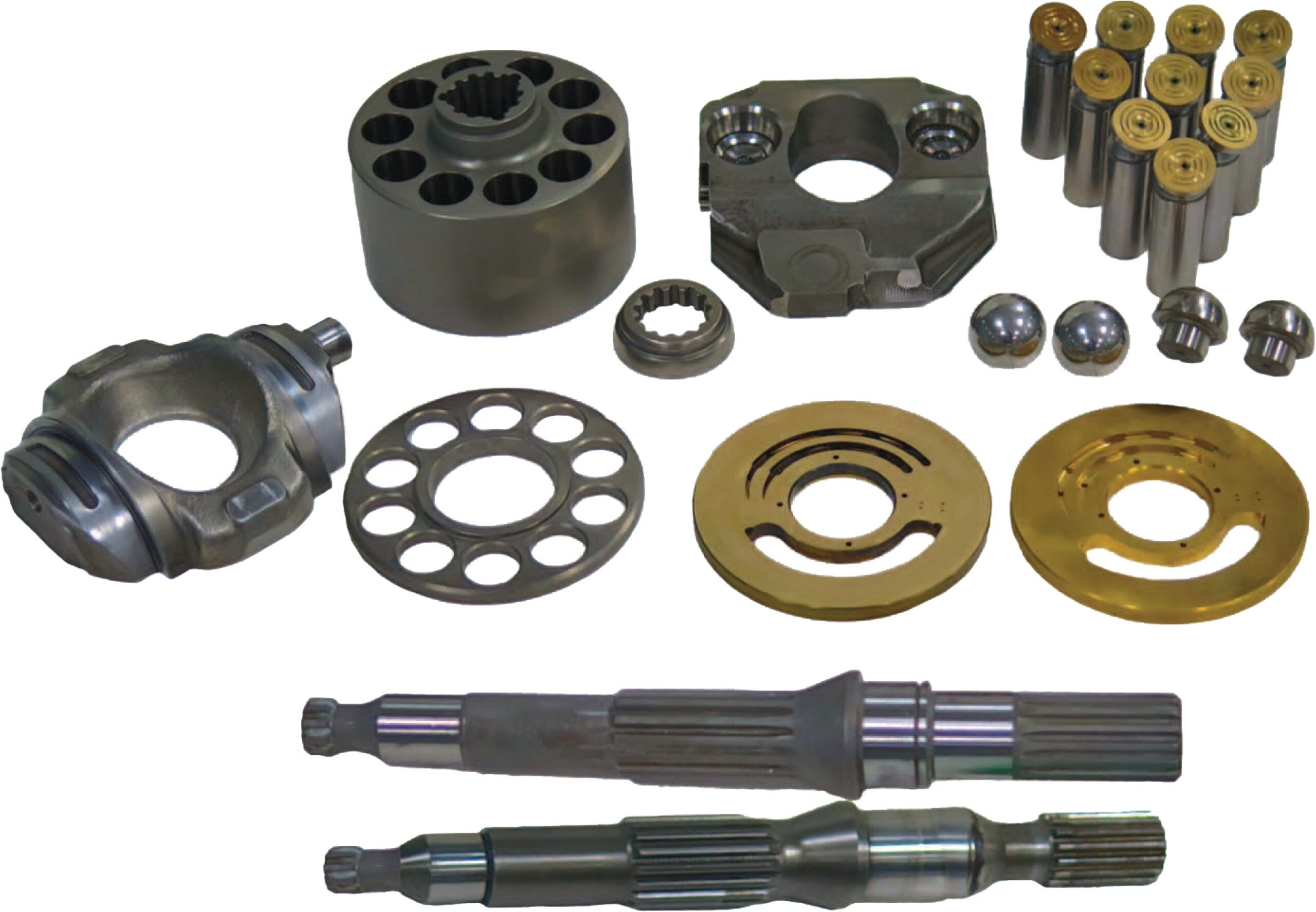

Replacement parts for Komatsu LPD25/28 Hydraulic Pump — covering LPD25/28. Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Komatsu LPD25/28 Hydraulic Pump |
| Models covered | LPD25/28 |
| Parts in this range | 14 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

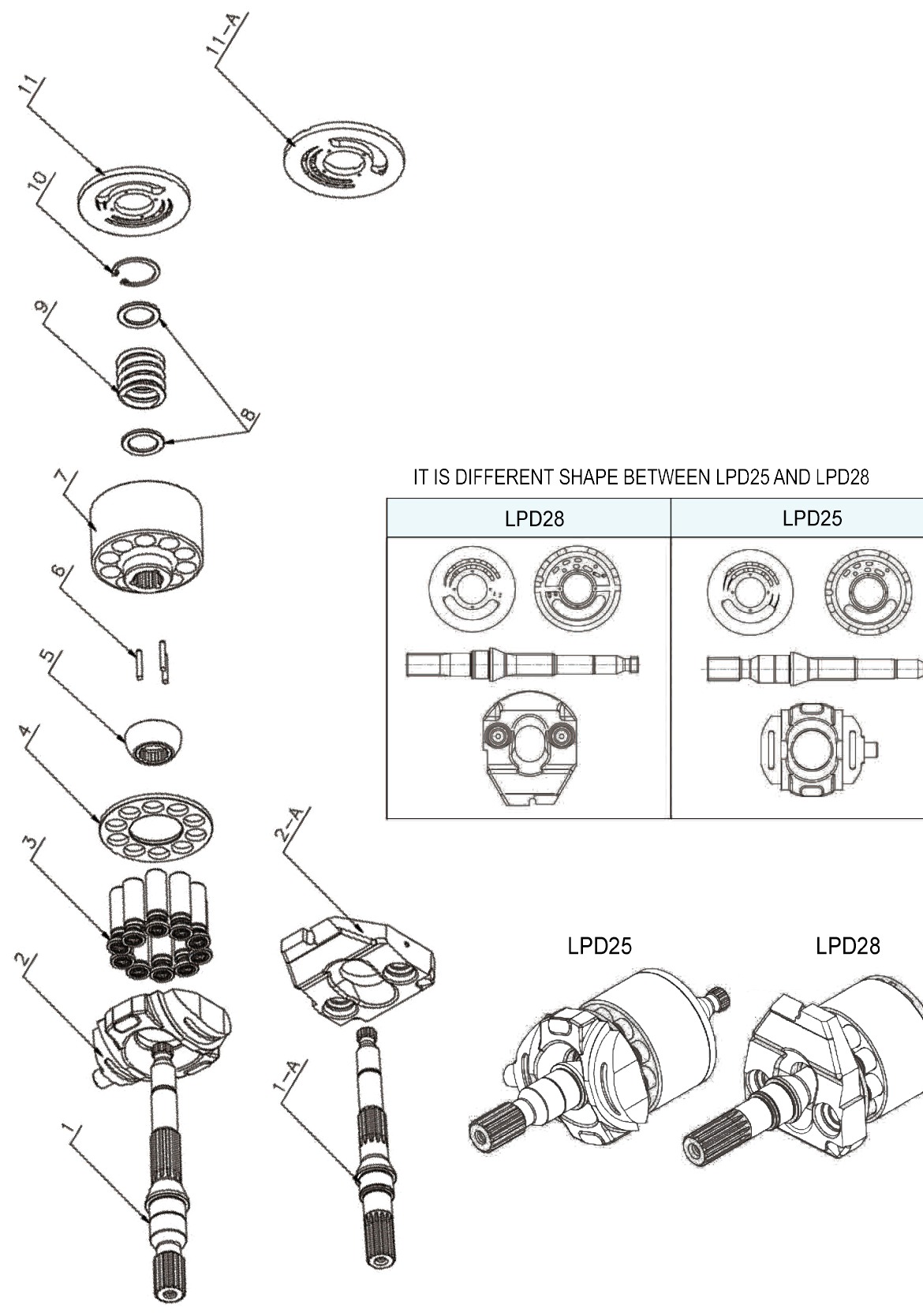

Parts list — Komatsu LPD25/28 Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Drive Shaft-Cradle Type | 1 | LPD25 |
| 1-A | Drive Shaft-Pivot Type | 1 | LPD28 |
| 2 | Cam Rocker-Cradle Type | 1 | LPD25 |
| 2-A | Cam Rocker-Pivot Type | 1 | LPD28 |
| 3 | Piston Shoe | 10 | |
| 4 | Set Plate | 1 | |
| 5 | Ball Guide | 1 | |
| 6 | Pin of Cylinder Block | 3 | |
| 7 | Cylinder Block | 1 | |
| 8 | Space | 2 | |
| 9 | Coil Spring | 1 | |
| 10 | Snap Ring | 1 | |
| 11 | Valve Plate-Cradle Type | 1 | LPD25 |
| 11-A | Valve Plate-Pivot Type | 1 | LPD28 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
