Description

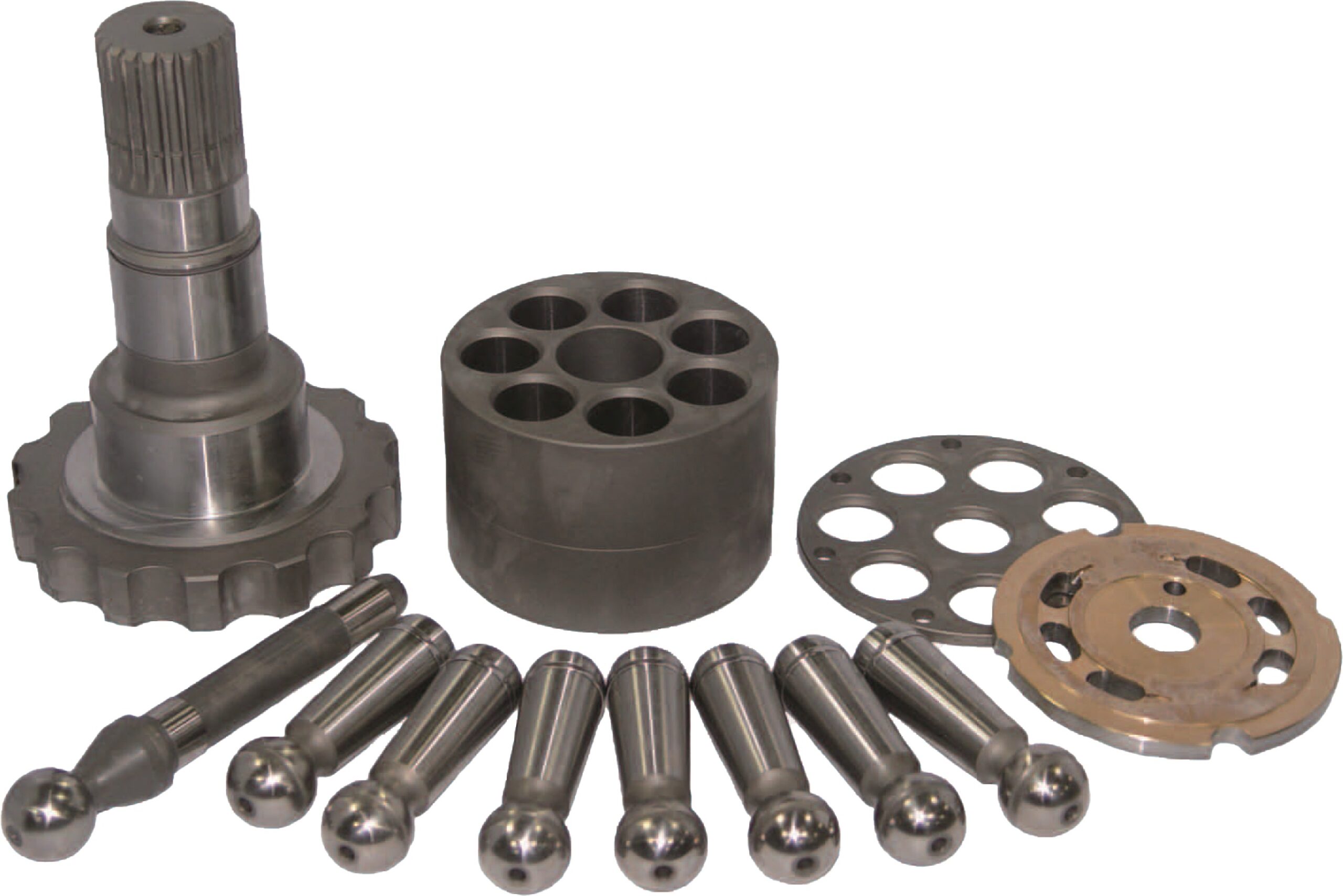

Replacement parts for Komatsu KMF125/230 Swing Motor — covering KMF125/230 (swing motors). Includes cylinder blocks, valve plates, drive shafts and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Motor series | Komatsu KMF125/230 Swing Motor |
| Models covered | KMF125/230 (swing motors) |
| Parts in this range | 11 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

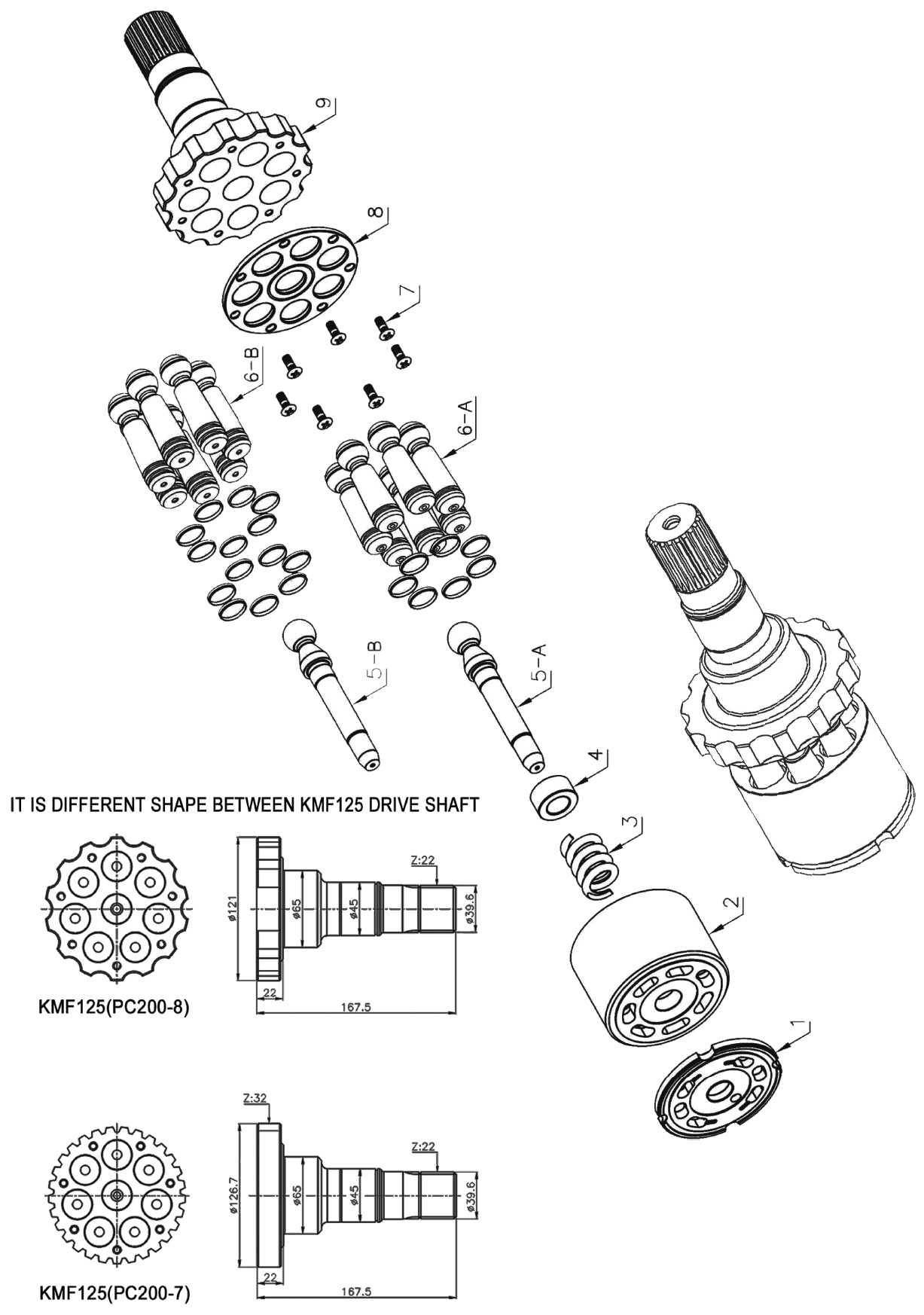

Parts list — Komatsu KMF125/230 Swing Motor Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Valve Plate (L/R) | 1 | |
| 2 | Cylinder Block | 1 | |
| 3 | Coil Spring | 1 | |
| 4 | Holder | 1 | |
| 5-A | Center Pin (L=147.3) | 1 | PC200-8 |
| 5-B | Center Pin (L=152.3) | 1 | PC200-7 |
| 6-A | Piston (One Ring Type) | 7 | |
| 6-B | Piston (Two Ring Type) | 7 | |
| 7 | Socket Bolt | 7 | |
| 8 | Retainer Plate | 1 | |
| 9 | Drive Shaft | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
