Replacement parts for Komatsu HPV Series Gear Pump — covering HPV35–160 gear pumps (PC60–PC400). Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Komatsu HPV Series Gear Pump |
| Models covered | HPV35–160 gear pumps (PC60–PC400) |
| Parts in this range | 19 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

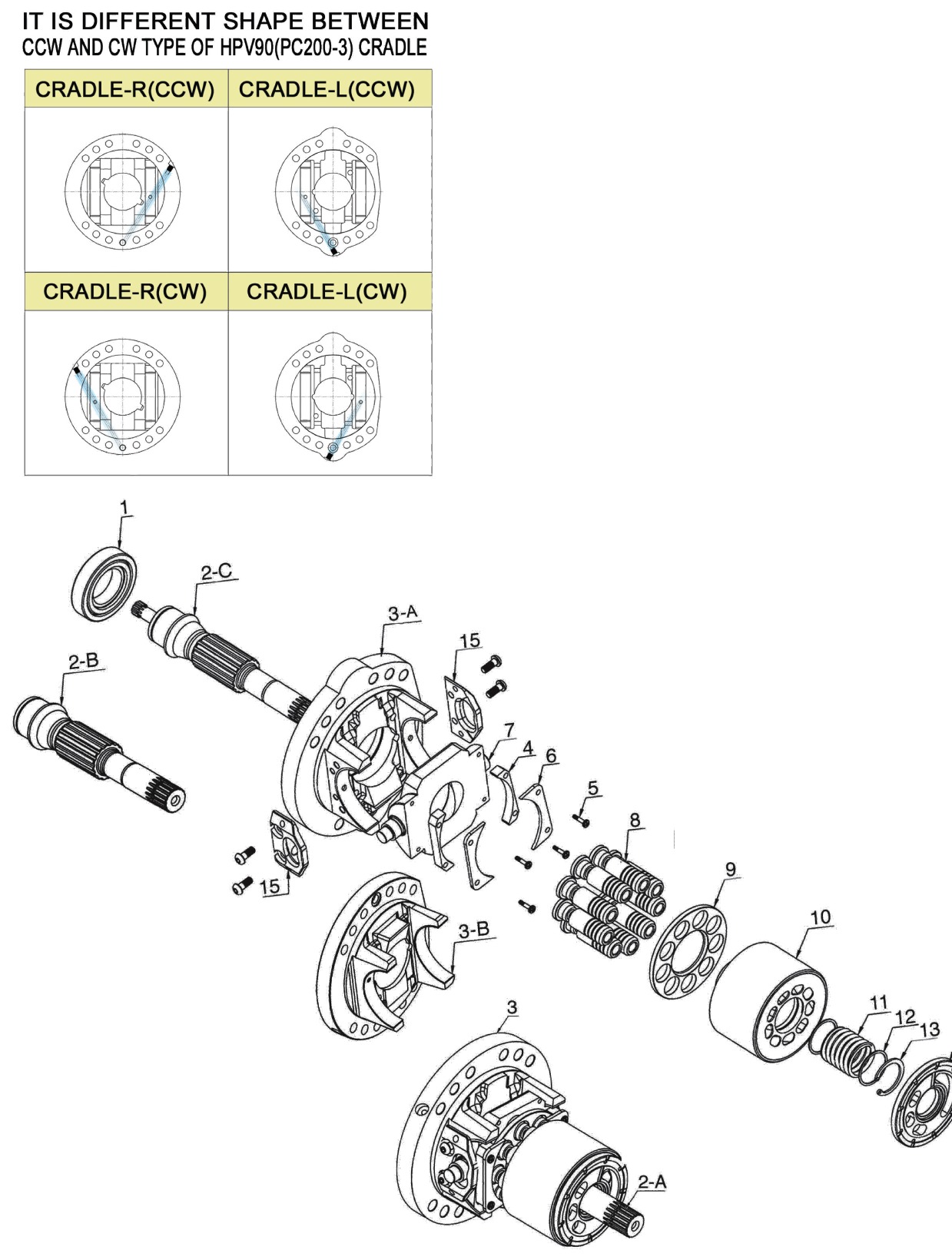

Parts list — Komatsu HPV Series Gear Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Roller Bearing | 1 | |
| 2-A | Drive Shaft (R) | 1 | |
| 2-B | Driveshaft(L)-Key | 1 | PC200-5 |
| 2-C | Driveshaft(L)-Spline | 1 | PC200-3 |
| 3 | Cradle (R) | 1 | |
| 3-A | Cradle (L/R) | 1 | |
| 3-B | Cradle (L) | 1 | PC150-3/5 |
| 4 | Space | 2 | |
| 5 | Socket Bolt | 4 | |
| 6 | Fix Plate | 2 | |
| 7 | Cam Rocker | 1 | |
| 8 | Piston Shoe | 9 | |
| 9 | Set Plate | 1 | |
| 10 | Cylinder Block | 1 | |
| 11 | Coil Spring | 1 | |
| 12 | Washer | 2 | |
| 13 | Snap Ring | 1 | |
| 14 | Valve Plate (L/R) | 1 | |
| 15 | Thrust Bearing | 2 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
