Description

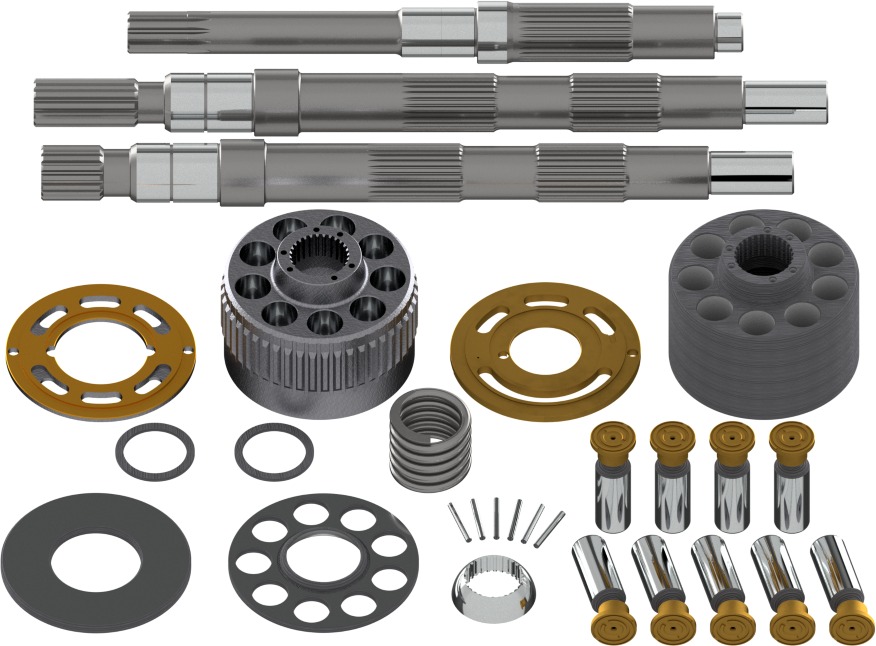

Replacement parts for Kawasaki NVK45-DNB08 Hydraulic Pump — covering NVK45 (external/internal) + DNB08. Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Kawasaki NVK45-DNB08 Hydraulic Pump |
| Models covered | NVK45 (external/internal) + DNB08 |
| Parts in this range | 17 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

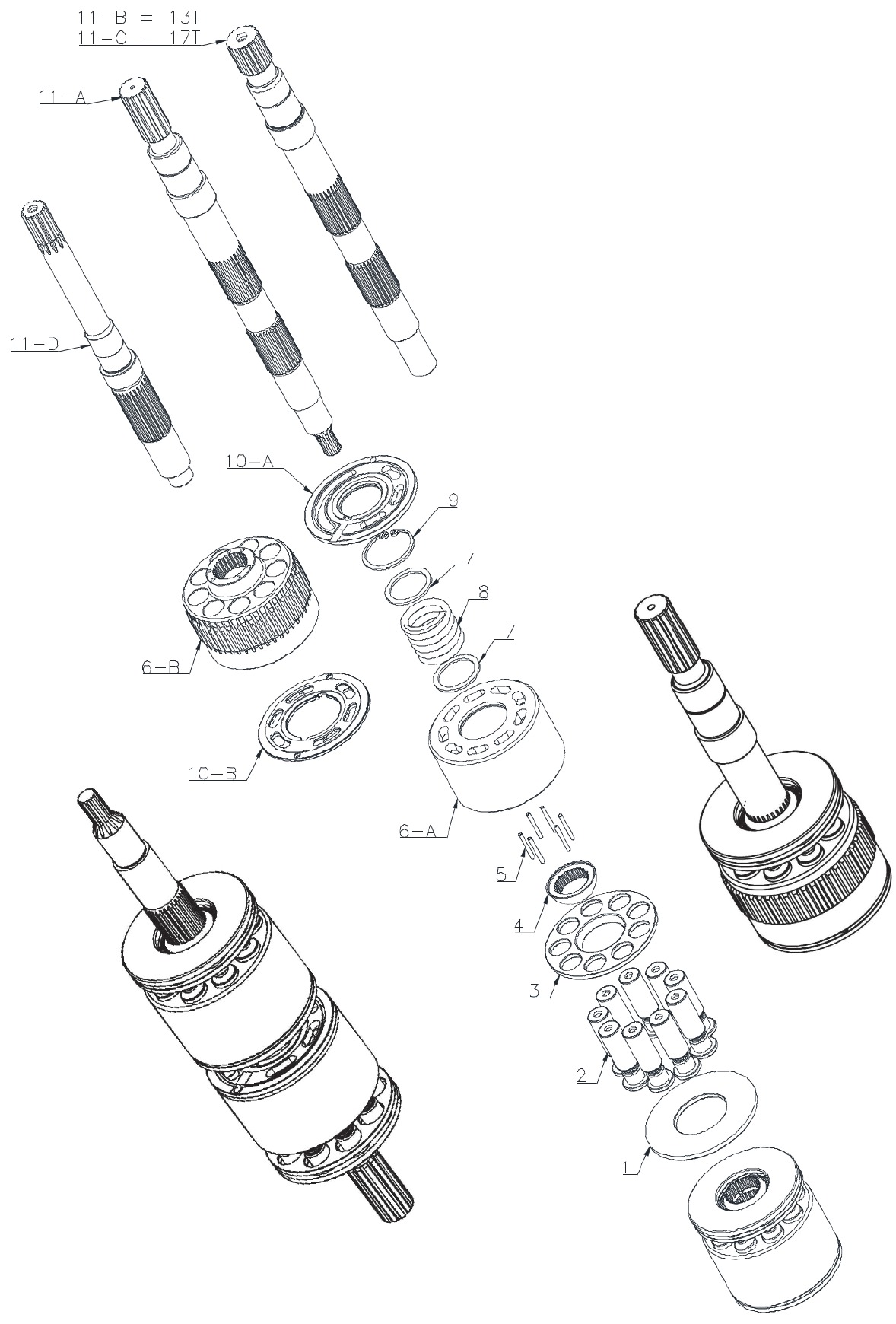

Parts list — Kawasaki NVK45-DNB08 Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Shoe Plate | 1 | |
| 2 | Piston Shoe | 9 | |
| 2 | Piston Shoe | 9 | DNB08 |
| 3 | Set Plate | 1 | |
| 4 | Ball Guide | 1 | |
| 5 | Pin of Cylinder Block | 6 | |
| 6-A | Cylinder Block | 1 | |
| 6-B | Cylinder Block | 1 | DNB08 |
| 7 | Space | 2 | |
| 8 | Coil Spring | 1 | |
| 9 | Snap Ring | 1 | |
| 10-A | Valve Plate (R/L) | 1 | |
| 10-B | Valve Plate | 1 | DNB08 |
| 11-A | Drive Shaft (12T/12T) | 1 | EXTERNAL |
| 11-B | Drive Shaft (13T/12T) | 1 | INTERNAL |
| 11-C | Drive Shaft (17T/12T) | 1 | INTERNAL |
| 11-D | Drive Shaft | 1 | DNB08 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
