Description

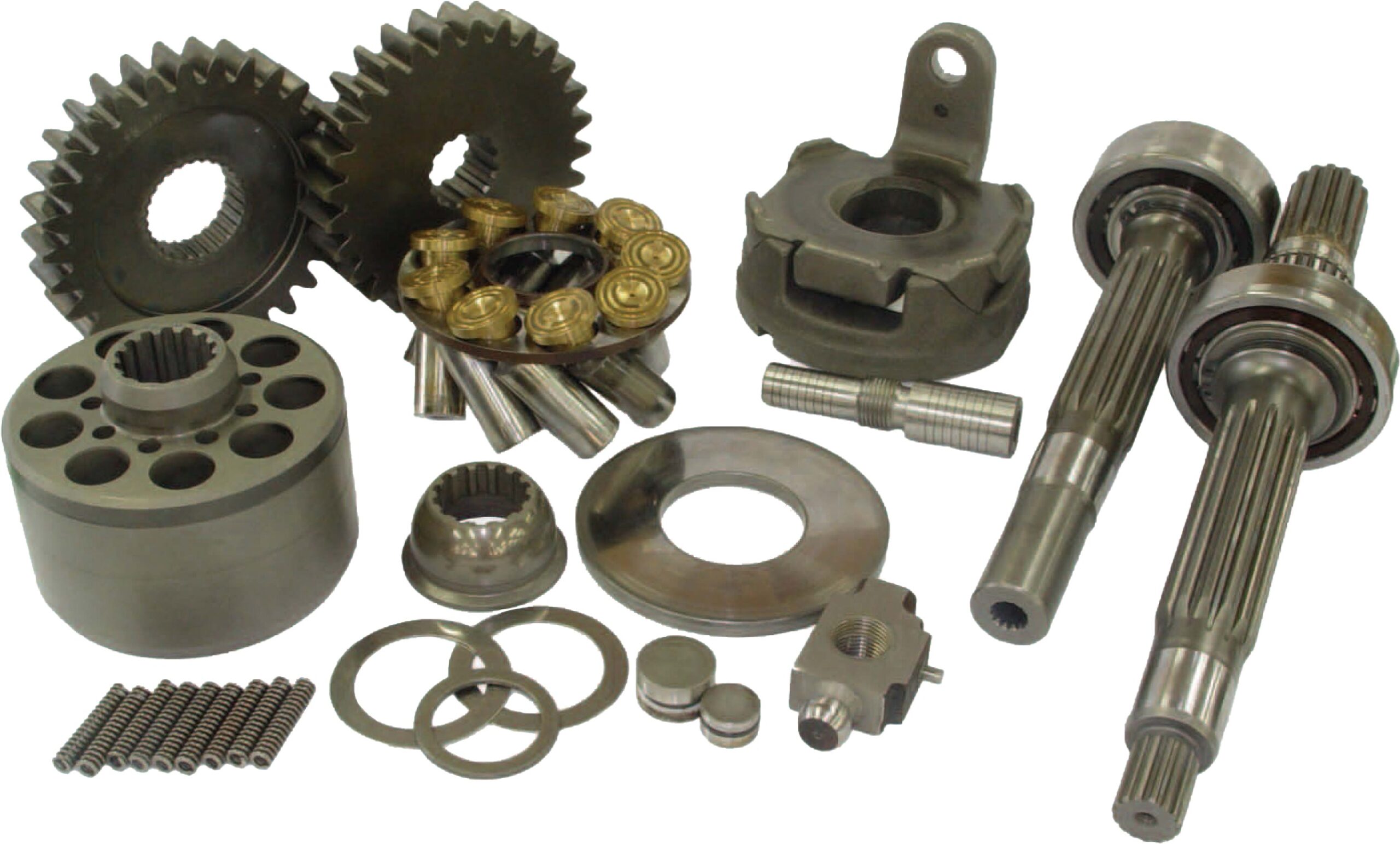

Replacement parts for Kawasaki H3V / H5V DP (DPH) Hydraulic Pump — covering H3V112DP · H5V160DP · H5V200DPH · H5V212DPH. Includes cylinder blocks, valve plates, drive shafts, piston shoes and pistons — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Kawasaki H3V / H5V DP (DPH) Hydraulic Pump |
| Models covered | H3V112DP · H5V160DP · H5V200DPH · H5V212DPH |
| Parts in this range | 24 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

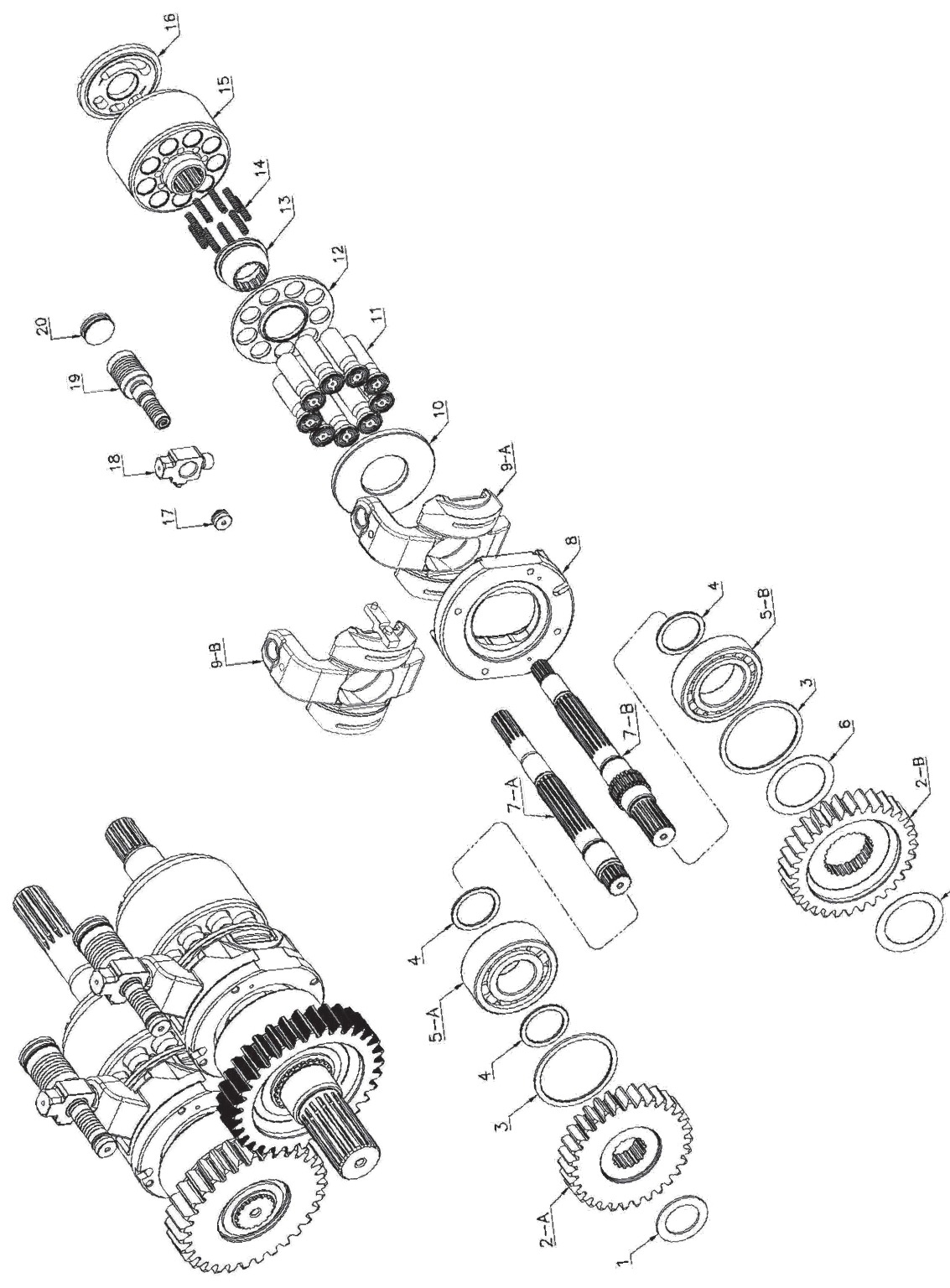

Parts list — Kawasaki H3V / H5V DP (DPH) Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Space of Idler Gear | 1 | |
| 2-A | Idler Gear (L) | 1 | |
| 2-B | Idler Gear (R) | 1 | |
| 3 | Space of Bearing — Out | 2 | |
| 4 | Space of Bearing — In | 3 | |
| 5-A | Bearing (L) | 1 | |
| 5-B | Bearing (R) | 1 | |
| 6 | Shim of Drive Shaft | 2 | |
| 7-A | Drive Shaft (L) | 1 | |
| 7-B | Drive Shaft (R) | 1 | |
| 8 | Support | 1 | |
| 9-A | Swash Plate | 1 | |
| 9-B | Swash Plate (Sensor Type) | 1 | |
| 10 | Shoe Plate | 1 | |
| 11 | Piston Shoe | 9 | |
| 12 | Set Plate | 1 | |
| 13 | Ball Guide | 1 | |
| 14 | Coil Spring | 9 | |
| 15 | Cylinder Block | 1 | |
| 16 | Valve Plate (L/R) | 1 | |
| 17 | Stopper-Small | 1 | |
| 18 | Tilting Pin | 1 | |
| 19 | Servo Piston | 1 | |
| 20 | Stopper-Big | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
