Description

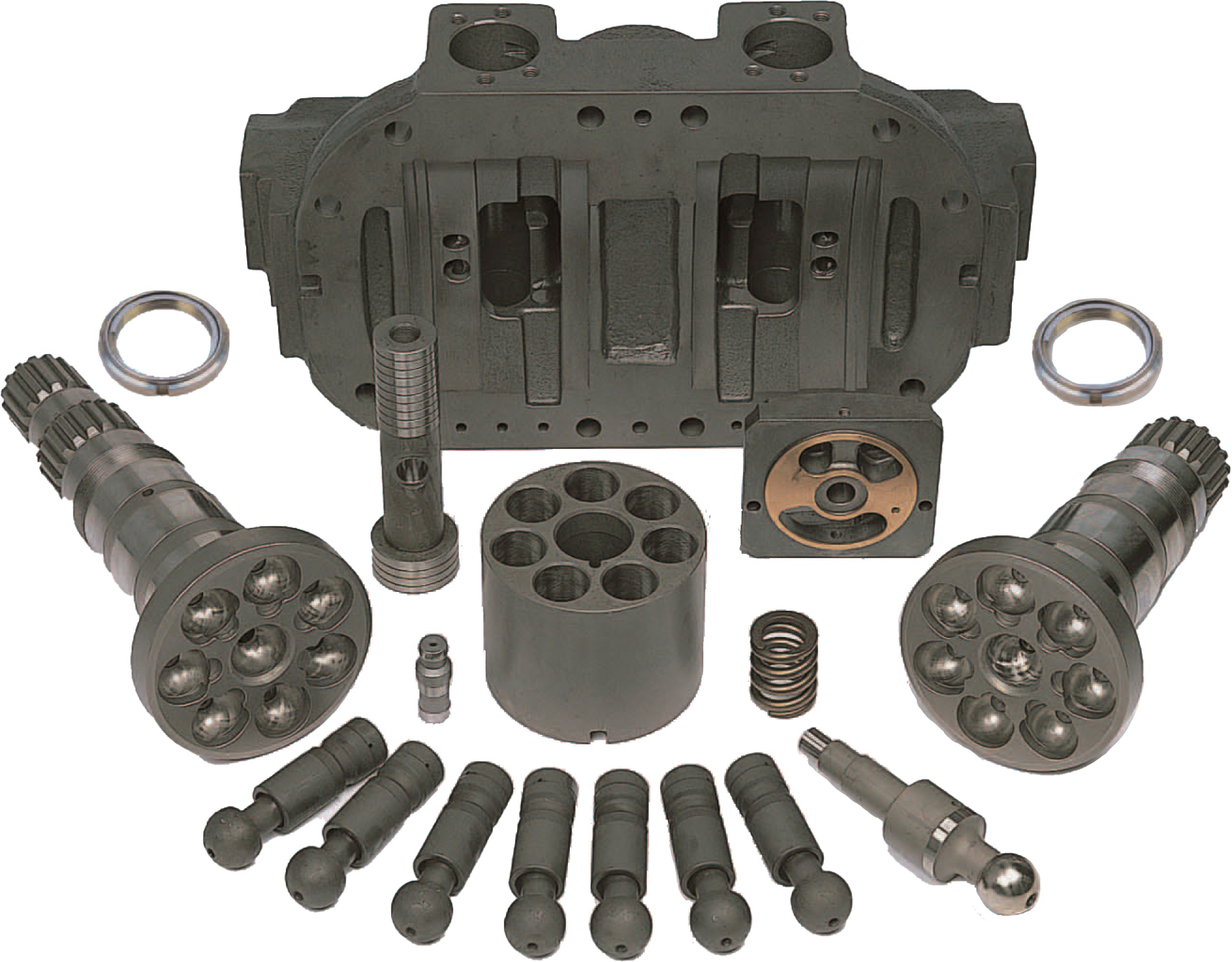

Replacement parts for Hitachi HPVO50/102/105/118 Hydraulic Pump — covering HPVO50/102/105/118. Includes valve plates, drive shafts, pistons, servo pistons and rotors — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Hitachi HPVO50/102/105/118 Hydraulic Pump |
| Models covered | HPVO50/102/105/118 |
| Fitment | For Hitachi |
| Parts in this range | 20 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |
Parts list — Hitachi HPVO50/102/105/118 Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Servo Piston | 2 | |
| 2 | Servo Piston Pin | 2 | |
| 3 | Head Cover | 1 | |
| 4 | Valve Plate (R) | 1 | |
| 5 | Snap Ring | 12 | |
| 6 | Bolt of Valve Plate | 4 | |
| 7 | Rotor | 2 | |
| 8 | Link of Valve Plate | 4 | |
| 9 | Pin of Link | 4 | |
| 10 | Coil Spring | 2 | |
| 11 | Piston | 14 | |
| 12 | Feedback Lever | 2 | |
| 13 | Valve Plate (L) | 1 | |
| 14 | Center Pin | 2 | |
| 15 | Pin of Center Pin | 2 | |
| 16 | Drive Shaft (R) | 1 | |
| 17 | Drive Shaft (L) | 1 | |
| 18 | Lock Nut | 2 | |
| 19-A | Pin of Feedback-A | 2 | |
| 19-B | Pin of Feedback-B | 2 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
