Description

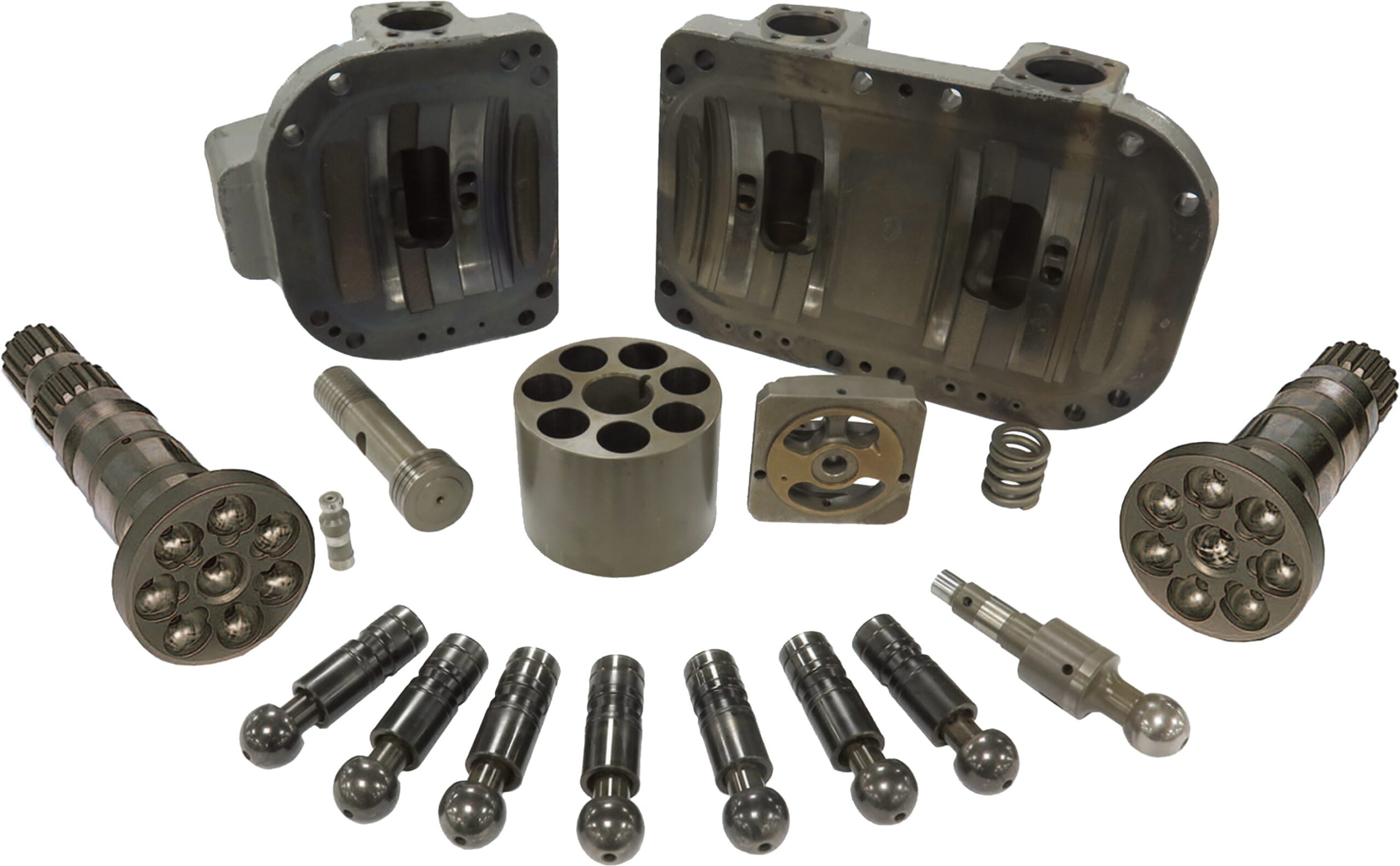

Replacement parts for Hitachi HPVO102/118/119 & HPVO145 triple Hydraulic Pump — covering Triple-pump type. Includes valve plates, drive shafts, pistons, servo pistons and rotors — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Hitachi HPVO102/118/119 & HPVO145 triple Hydraulic Pump |
| Models covered | Triple-pump type |
| Fitment | For Hitachi |
| Parts in this range | 23 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |
Parts list — Hitachi HPVO102/118/119 & HPVO145 triple Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Servo Piston | — | |
| 2 | Servo Piston Pin | — | |
| 3-A | Head Cover (Double/TOP) | — | |
| 3-B | Head Cover (Double/Back) | — | |
| 4 | Valve Plate (L) | — | |
| 5 | Snap Ring | — | |
| 6 | Bolt of Valve Plate | — | |
| 7 | Rotor | — | |
| 8 | Piston | — | |
| 9 | Coil Spring of Center Pin | — | |
| 10 | Center Pin | — | |
| 11 | Pin of Center Pin | — | |
| 12 | Drive Shaft (L) | — | |
| 13 | Lock Nut | — | |
| 14 | Drive Shaft (R) | — | |
| 15 | Valve Plate (R) | — | |
| 16-A | Head Cover (Single, 2-Port) | — | |
| 16-B | Head Cover (Single, 3-Port) | — | |
| 17 | Link of Center Pin | — | |
| 18 | Pin of Link | — | |
| 19 | Pin of Feedback-A | — | |
| 20 | Pin of Feedback-B | — | |
| 21 | Feedback Lever | — |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
