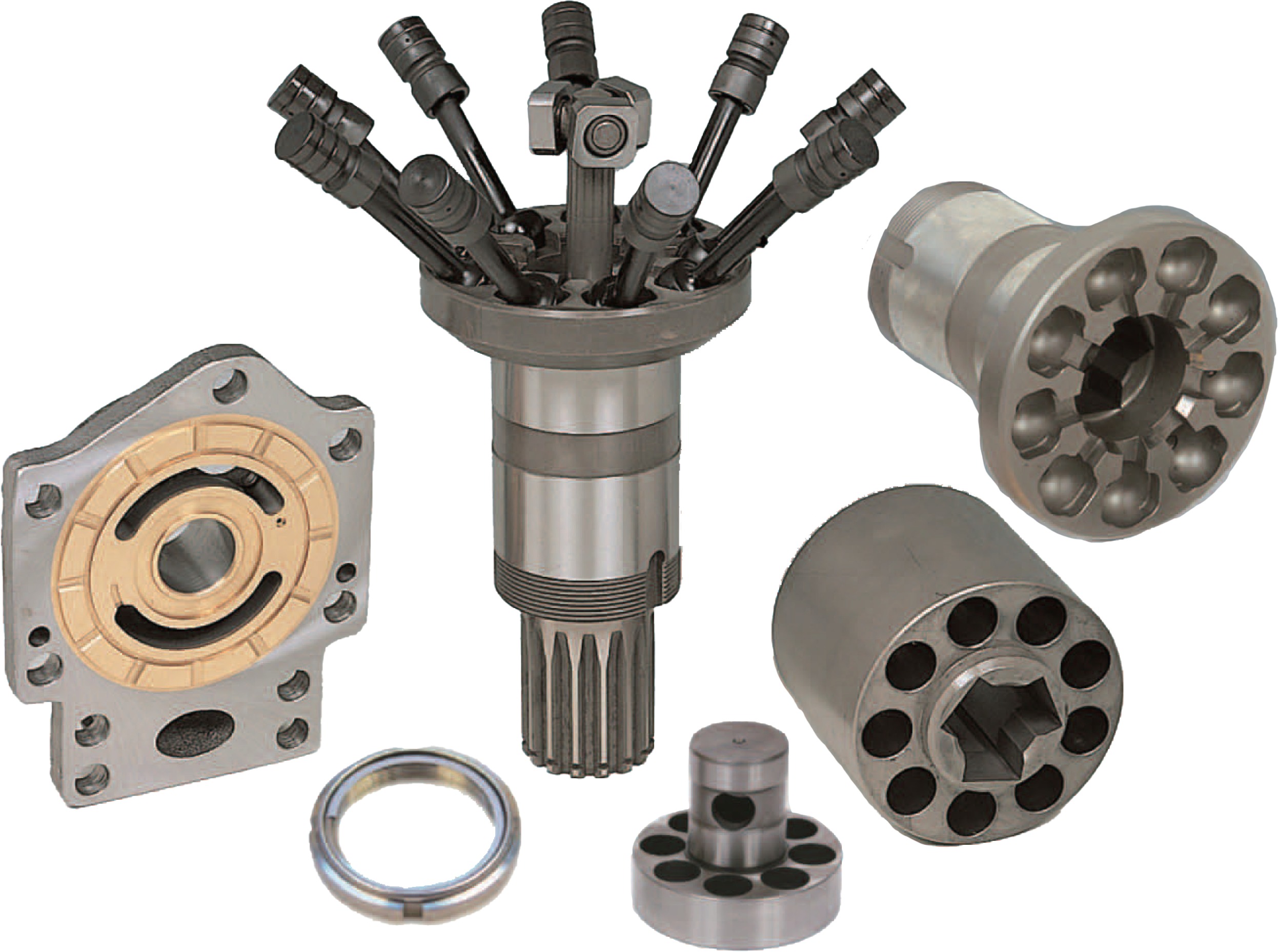

Replacement parts for Hitachi HPV125B & HMT125AC Hydraulic — covering HPV125B / HMT125AC. Includes valve plates, drive shafts, pistons and rotors — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Series | Hitachi HPV125B & HMT125AC Hydraulic |
| Models covered | HPV125B / HMT125AC |
| Parts in this range | 19 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |
Parts list — Hitachi HPV125B & HMT125AC Hydraulic Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1 | Lock Nut | 1 | |
| 2-A | Drive Shaft (HPV125B) | 1 | |
| 2-B | Drive Shaft (HMT125AC) | 1 | |
| 3 | Piston | 9 | |
| 4-A | Joint Bearing-Square Type | 6 | |
| 4-B | Joint Bearing-Round Type | 6 | |
| 5 | Center Joint Rod | 1 | |
| 6 | Rotor | 1 | |
| 7 | Axle Shaft | 2 | |
| 8 | Joint Stopper | 1 | |
| 9 | Holder | 1 | |
| 10 | Coil Spring of Rotor | 1 | |
| 11 | Washer | 1 | |
| 12 | Needle Bearing | 1 | |
| 13 | Snap Ring | 1 | |
| 14 | Center Shaft | 1 | |
| 15-A | Head Valve | 1 | |
| 15-B | Valve Plate | 1 | |
| 16 | Rotary Joint | 1 |
Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
