Description
Replacement parts for Hitachi HPV116/135/145 Hydraulic Pump — covering HPV116/135/145. Includes valve plates, drive shafts, pistons, servo pistons and rotors — every part in the list below, supplied individually or as a set. Send us your model or a photo of the nameplate and we confirm the exact parts before quoting.
| Pump series | Hitachi HPV116/135/145 Hydraulic Pump |
| Models covered | HPV116/135/145 |
| Fitment | For Hitachi |
| Parts in this range | 25 line items — see the parts list below |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |
Parts list — Hitachi HPV116/135/145 Hydraulic Pump Parts
| Item | Part | Qty per unit | Note |
|---|---|---|---|
| 1-1 | Head Cover (C-Type) | 1 | |
| 1-2 | Head Cover (D-Type) | 1 | |
| 1-3 | Head Cover (F-Type) | 1 | |
| 2 | Servo Piston | 1 | |
| 3 | Servo Piston Pin | 1 | |
| 4 | Valve Plate | 1 | |
| 5 | Bolt of Valve Plate | 2 | |
| 6 | Snap Ring Center | 1 | |
| 7 | Rotor | 1 | |
| 8 | Feedback Lever | 1 | |
| 9 | Snap Ring | 6 | |
| 10 | Link of Valve Plate | 2 | |
| 11 | Pin of Link | 2 | |
| 12 | Coil Spring | 1 | |
| 13 | Piston | 7 | |
| 14 | Pin of Center Pin | 1 | |
| 15-1 | Center Pin (C-Type) | 1 | C/D/F-TYPE |
| 15-2 | Center Pin (G-Type) | 1 | G/H-TYPE |
| 16 | Ball of Center Pin | 1 | |
| 17-1 | Drive Shaft | 1 | C/D/F-TYPE |
| 17-2 | Drive Shaft | 1 | G/H-TYPE |
| 18-1 | Pin of Feedback-A | 1 | |
| 18-2 | Pin of Feedback-B | 1 | |
| 19 | Snap Ring | 1 | |
| 20 | Lock Nut | 1 |

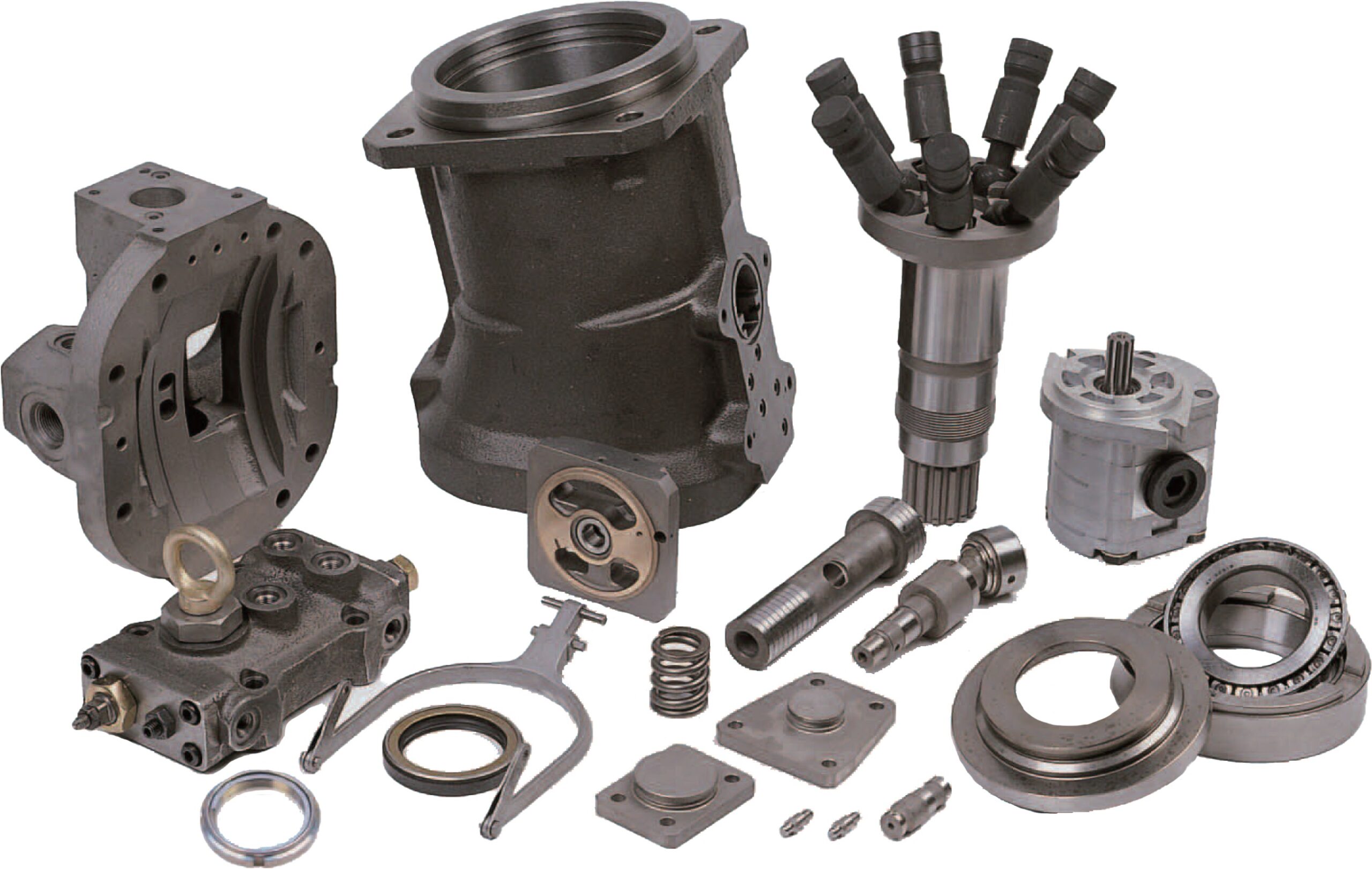

Every part is verified against the manufacturer’s data before quoting. Photos of the actual parts are available on request.
