Description
Travel motor assembly (final drive) with reduction gear. Specifications shown are from manufacturer catalog data. Exact configuration confirmed by nameplate before quoting.
| Series models | HAG18VP · HAG26VP · HAG33VP |
|---|---|
| Gear ratio | 42.958 (HAG18VP) · 53 (HAG26VP) · 58.943 (HAG33VP) |
| Theoretical output torque | 220 kgf·m (HAG18VP) · 400 kgf·m (HAG26VP) · 550 kgf·m (HAG33VP) |
| Output speed | 70 rpm (HAG18VP) · 60 rpm (HAG26VP / HAG33VP) |
| Displacement | 18 cc/rev (HAG18VP) · 27.6 cc/rev (HAG26VP) · 33.8 cc/rev (HAG33VP) |
| Max. motor speed | 3,800 rpm (HAG18VP) · 3,500 rpm (HAG26VP) · 3,300 rpm (HAG33VP) |
| Max. pressure | 250 kg/cm² (HAG18VP / HAG26VP) · 280 kg/cm² (HAG33VP) |
| Application class | 2.5 ton (HAG18VP) · 4.5 ton (HAG26VP) · 6 ton (HAG33VP) |
| Manufacturer | Handok Hydraulic |
| Country of origin | South Korea |

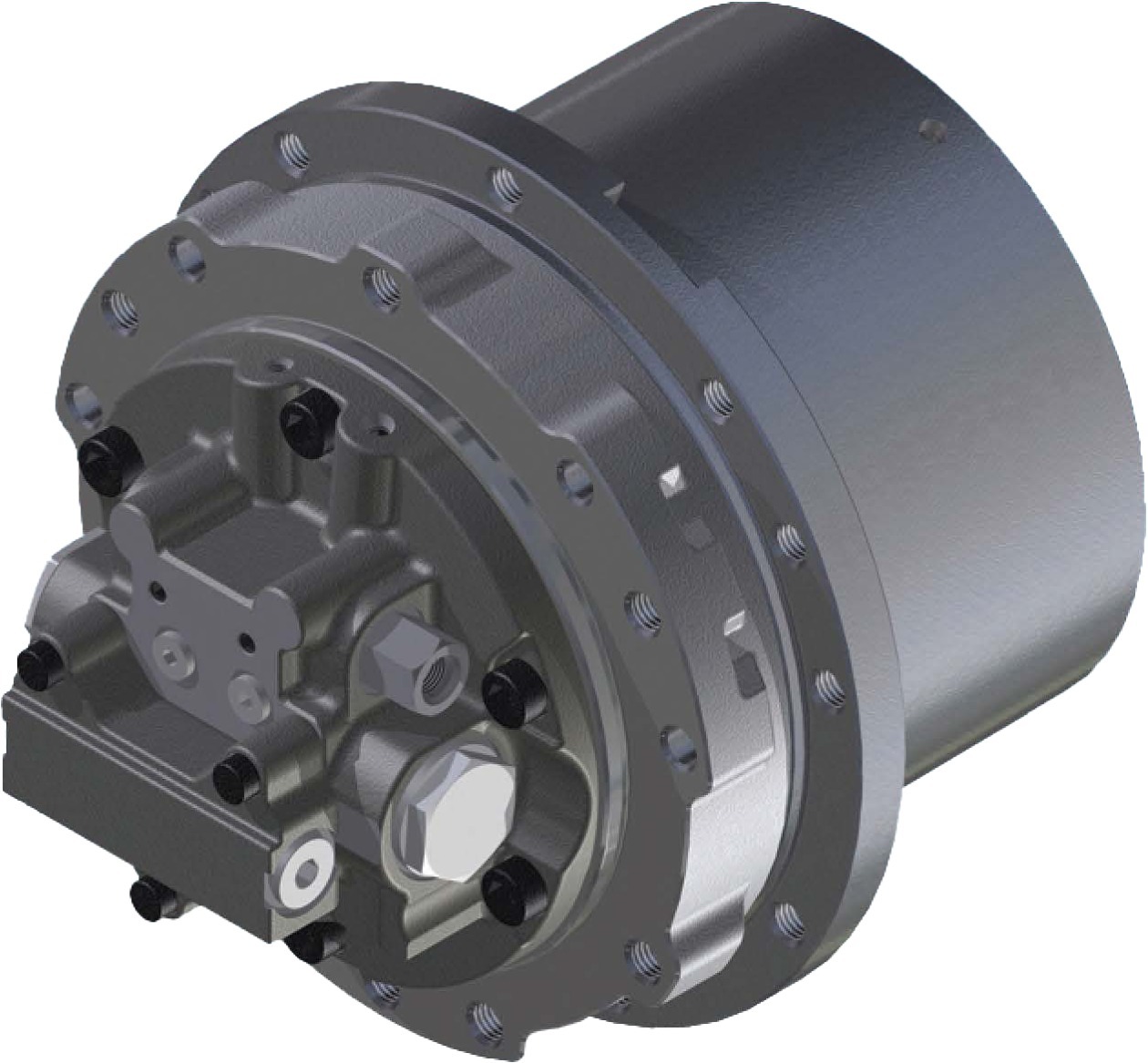

Manufacturer catalog image of this travel motor model shown. Photos of the exact unit are available on request — send a photo of your motor nameplate with your enquiry and we match the variant.
