Caterpillar 350B / 385B Main Hydraulic Pump — H3V180DTH and H3V280DTH

Caterpillar 350B / 385B Main Hydraulic Pump

Send nameplate photo or part number — we confirm the exact match before quoting.

Request a Quote for this part

No prices are shown online — every request is quoted after identification and verification. Send a nameplate photo — the quote form accepts a photo of your part or nameplate.

Categories: ,
01
Send the part number or a nameplate photo
02
We verify the exact match before quoting
03
Approve the quote — then we order

Description

Main hydraulic pump for Caterpillar 350B and 385B/C excavators. Specifications shown are from manufacturer catalog data. Exact configuration confirmed by nameplate before quoting.

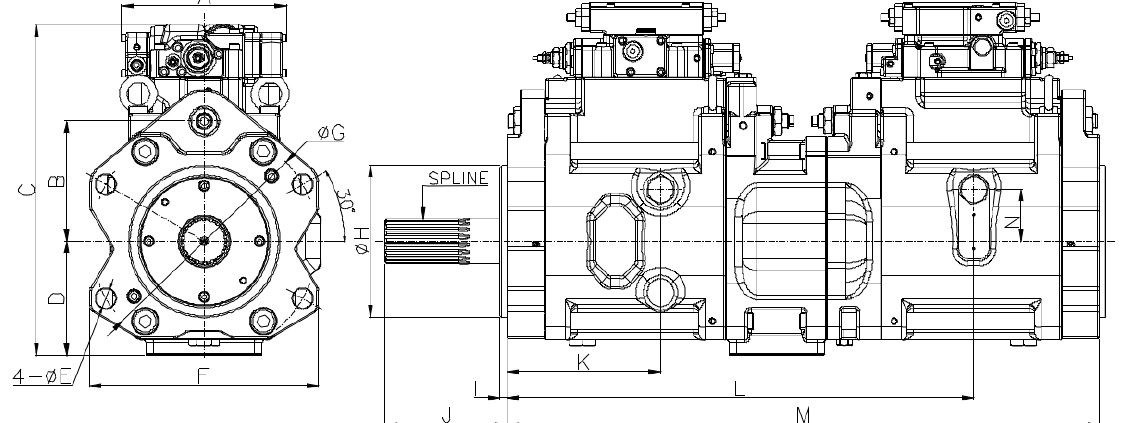

Caterpillar 350B 385B hydraulic pump dimension drawing

Equipment model: Caterpillar 350B / 385B / 385C

Series models: H3V180DTH (350B) · H3V280DTH (385B/C · 385D/390D)

Displacement: 180 cc/rev (H3V180DTH) · 280 cc/rev (H3V280DTH)

Max. pressure: 350 kg/cm²

Max. speed: 2,150 rpm (H3V180DTH) · 1,900 rpm (H3V280DTH)

Manufacturer: Handok Hydraulic

Country of origin: South Korea

Status: Model range documented from manufacturer catalogues — exact variant and availability confirmed at quotation

Pricing: Price on quotation. Fitment is confirmed by a specialist before any order.

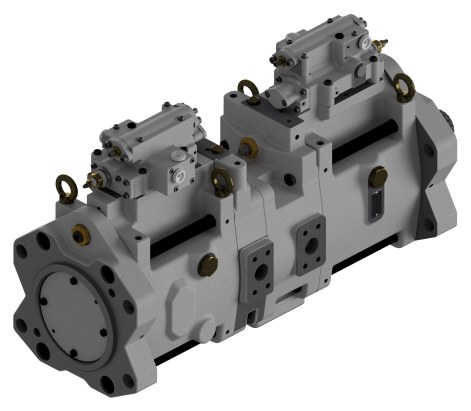

Manufacturer catalog image of this pump model shown. Photos of the exact unit are available on request — send a photo of your pump nameplate with your enquiry and we match the variant.
